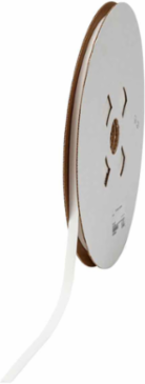

Brady PS-C-250-WT-J PermaSleeve Polyolefin Wire Marking Sleeves, 0.25" Dia x 200' L, White
Brady PS-C-250-WT-J PermaSleeve Polyolefin Wire Marking Sleeves, 0.25" Dia x 200' L, White
- MPN: PS-C-250-WT-J
- UPC: 662820996095
- PPN: BRD-PS-C-250-WT-J
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$557.10/ EA
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; BBP72; i7100; i5100
- Ribbon Series
- R4300
- Shrink Ratio
- 3:1
- Total Qty per Pack
- 1 Roll(s) / Roll
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 6.4 mm
- Dimensions (Metric)
- 11.15 mm W x 11.2 mm H x 60.96 m L
- Height (in/ft/yd)
- 0.439 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.215 in
- Maximum Wire Gauge
- 8 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 2.39 mm
- Recovered Diameter (in/ft/yd)
- 0.094 in
- Recovered Wall Thickness (in/ft/yd)
- 0.025 in
- Roll Length (in/ft/yd)
- 200 ft
- Size - Length (m)
- 60.96 m
- Sleeve Size (in/ft/yd)
- 0.25 in Dia x 200 ft L
- Wire Diameter Range
- 0.094 in to 0.215 in
Brand NameBrady®
Enables Industry ComplianceMethod 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224
For Use with PrinterBBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Printer CompatibilityBBP12; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
Recommended RibbonIP-R6606; R6606
ShapeContinuous
Suggested Ribbon SeriesR4300; R5000; R6600
Trade NamePermaSleeve®
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Smear-Resistant
Diameter as Supplied (in/ft/yd)0.25 in
Dimensions0.439 in H
Dimensions 20.439 in H
Height (mm/cm/m)11.2 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)5.46 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.094 in
Minimum Wire Gauge16 AWG
Recovered Diameter (mm/cm/m)2.4 mm
Recovered Wall Thickness (mm/cm/m)0.64 mm
Roll Length (mm/cm/m)60.96 m
Size - Width (mm)11.15 mm
Sleeve Size (mm/cm/m)6.4 mm Dia x 60.96 m L
Wire Gauge Range16 AWG to 8 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
