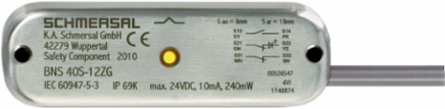

Schmersal 101215516 Magnetic Safety Sensor BNS 40S, 88 mm Width, Stainless Steel, IP69
Schmersal 101215516 Magnetic Safety Sensor BNS 40S, 88 mm Width, Stainless Steel, IP69
- MPN: 101215516
- PPN: SCM-101215516
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$403.20/ EA
Features
- LED version
- Stainless steel enclosure
- Cable connection suitable for the food industry
- Concealed mounting possible
- 88 mm x 27 mm x 14,5 mm
- Long life
- no mechanical wear
- Insensitive to soiling
- Insensitive to transverse misalignment
- Suitable for food processing industry
Specifications
Electrical data
- Switching voltage, maximum
- 24 VDC
- Switching capacity, maximum
- 0.2 W
Switching current, maximum0.01 A
Switching frequency, maximum5 Hz
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.
Mechanical data - Dimensions
- Length of sensor
- 14.5 mm
- Height of sensor
- 27 mm
Width of sensor88 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
Electrical data - Digital Output
- Design of control elements
- Miscellaneous, Reed contacts
General data - Features
- Concealed, threaded holes on the back
- No
- Integral system diagnostics, status
- Yes
- Number of normally closed (NC)
- 2
- Number of cable wires
- 6
Integral system diagnostics, generalYes
Prerequisite evaluation unitYes
Number of normally open (NO)1
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Stainless steel (V4A)
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)not flush
Gross weight250 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Wiring example

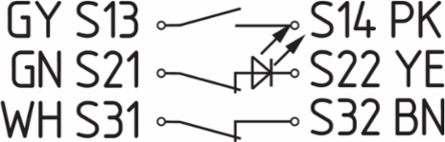

- Note (Wiring diagram)
- Contact S21-S22 must be integrated in the safety circuit.
Ambient conditions
- Degree of protection
- IP69
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +80 °C
Storage and transport temperature, maximum+80 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Wire cross-section
- 0.25 mm
- Material of the Cable mantle
- LiYY
Length of cable1 m
Wire cross-section23 AWG

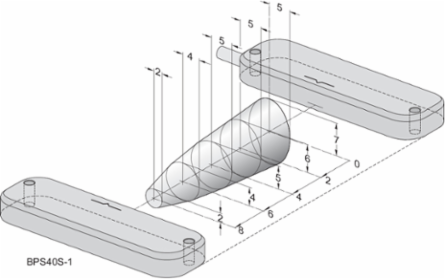

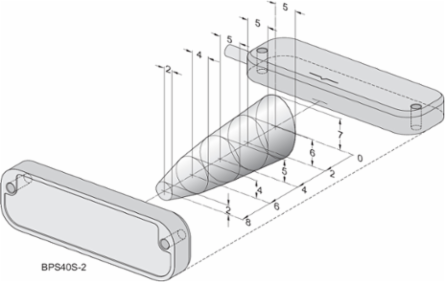

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 8 mm
Assured switching distance "OFF" S18 mm
Mechanical data
- Active area
- lateral
- Direction of motion
- Head-on to the active surface
Actuating elementMagnet
Accessory
- Recommendation (actuator)
- BPS 40S-2 | BPS 40S-1-C | BPS 40S-2-C
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus | ECOLAB
Status indication
- Note (Integral System Diagnostics, status )
- The LED is illuminated when the guard is closed.
