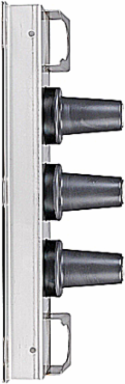

Thomas & Betts K650-J3-6 3-Point Rubber Junction
- MPN: K650-J3-6
- UPC: 783786479016
- PPN: T-B-K650-J3-6
CAD
$943.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Series Deadbreak 3-Point Junction, Hardware package consists of brackets and straps only.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold 600 Amp Series Elbow connectors. Mounting Bracket and Back Plate Only. |
| Standard | ANSI/IEEE Standard 386. |
| Material | EPDM Rubber |
| Connection | Push-In |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | 3-Point Rubber Junction |
| Application | Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. |
| Size | 5.87 inches (149. mm) Tall, 6.75 inch (171.5 mm) Wide, 19.00 inch (483.0 mm) Long, 4.00 inch (102 mm) Center Junction to Center Junction. 5.50 inch (139.7 mm) Center Slot to Center Slot on Short Side, 8.00 inch (203.0 mm) on Long Side, and 1.50 inch (38.1 mm) Center Slot from Edge on Long Side. |
| Temperature Rating | -40 Degrees to +65 Degrees Celsius |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
