Brady 65966 Breaker Lockout Device - Clamp-On, 0.31 Inch Shackle, 480/600 V, 6 Piece Pack
- MPN: 65966
- UPC: 754473659660
- PPN: BRD-65966
- UNSPSC: 39121901
CAD
$82.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

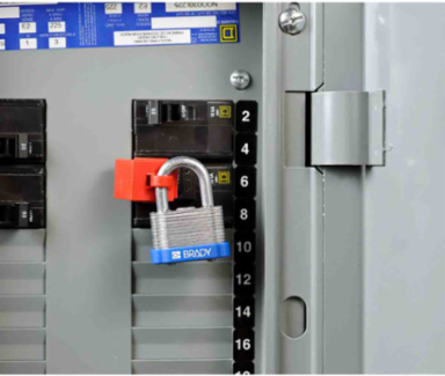

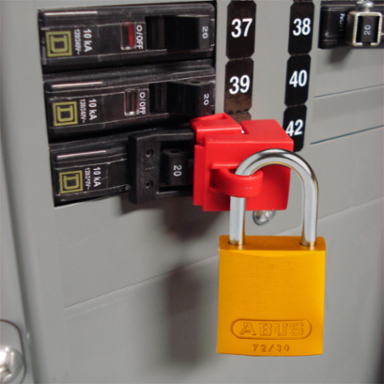

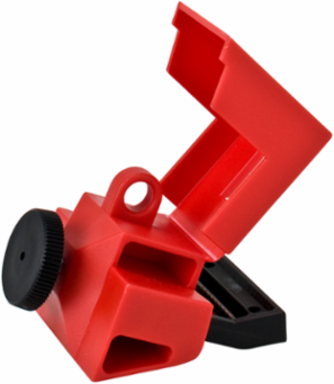

Clamp-on breaker lockouts are versatile and easy to install using the proprietary thumbwheel design - no screwdrivers needed!
Features
- Extremely versatile - works on a wide range of single-pole and internal-trip multi-pole breakers

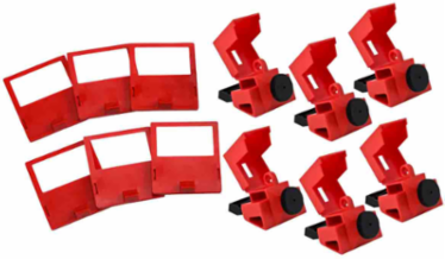

- Detachable cleat (included) expands the range of applicable breakers
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Red |
| Includes | Cleat |
| National Stock Number (NSN) | 5925015824251 |
| Risk Type | Electrical Risk |
| Total Qty per Pack | 6 Piece(s) / Pack |
| Brady Material Number | LOTO-2 |
| SAP B-Number | LOTO-2 |
| Depth (mm/cm/m) | 55.25 mm |
| Dimensions (Metric) | 40.34 mm W x 82.63 mm H x 55.25 mm D |
| Handle/Toggle Width (mm/cm/m) | 14.58 mm |
| Height (mm/cm/m) | 82.63 mm |
| Maximum Shackle Diameter (in/ft/yd) | 0.31 in |
| Maximum Switch Width (mm/cm/m) | 38.00 mm |
| Minimum Shackle Clearance (in/ft/yd) | 0.75 in |
| Sign Size-General | 3.253 in x 1.588 in |
| Size - Width (mm) | 40.34 mm |
| Width (in/ft/yd) | 1.588 in |
| Circuit Breaker Lockout Type | Single-Pole |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Maximum Number of Padlocks | 1 |
| Primary Noun, Basic Function | Lockout Device |
| Single-Pole Lockout Type | Clamp-On |
| Adhesive (Y/N) | No |
| Material | Polypropylene |
| Depth (in/ft/yd) | 2.175 in |
| Dimensions | 3.253 in H x 1.588 in W x 2.175 in D |
| Handle/Toggle Width (in/ft/yd) | 0.574 in |
| Height (in/ft/yd) | 3.253 in |
| Maximum Service Temperature °C | 80 °C |
| Maximum Shackle Diameter (mm/cm/m) | 7.87 mm |
| Minimum Service Temperature °C | -20 °C |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Size - W x H x D (mm) | 40.34 x 82.63 x 55.25 |
| Voltage | 480/600 V |
| Width (mm/cm/m) | 40.34 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Not Applicable |
| Contains 3TG Mineral | No-Does Not Contain |
