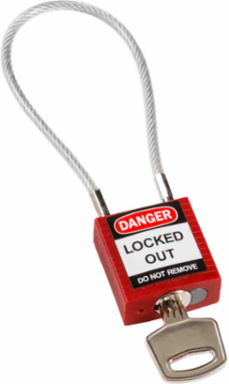

Brady 146120 Compact Cable Padlock, 5-Pin Cylinder, 4.2 Inch Vertical Clearance, 1.31 Inch Height
- MPN: 146120
- UPC: 754473549909
- PPN: BRD-146120
- UNSPSC: 46171501
CAD
$37.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Featuring an elongated, flexible cable, these padlocks are more versatile than standard safety padlocks, providing a multi-purpose solution.
Features

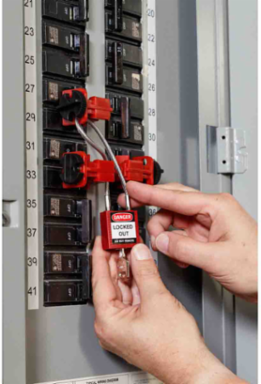

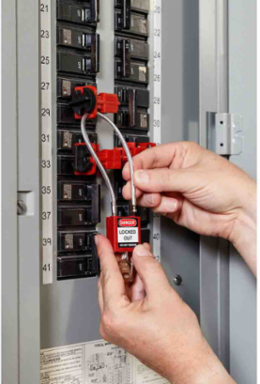

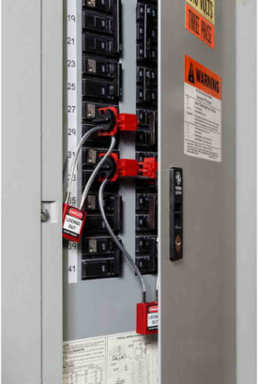

- Flexible cable allows for effective lockout in tight spaces such as breaker cabinets or simultaneous lockout of several energy isolation points.
- Angle and twist the padlock cable in tight application areas
- Complies with all OSHA requirements and makes it possible to secure several breaker lockouts simultaneously
- Includes high-visibility safety label
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Hazard Communication Identification
- Brand Name
- Brady®
- Color
- Red
- Engraving
- Yes
- Key Mechanism
- Standard Pin Tumbler
- Key-Retaining
- Yes
- Language
- English; French; Spanish
- Manufacturer Part Number
- 71/30CAB20 RED KD
- Number of Keys Included
- 1
- Number of Pin Tumblers
- 5
- Reverse Legend
- PROPERTY OF - PROPRIETE DE
- Shackle Type
- Open Shackle
- Total Qty per Pack
- 1 Piece(s) / Box
- Conductive
- No
- Material Properties
- Anti-spark, Non-conductive
- Shackle Material
- Steel
- Body Depth (mm/cm/m)
- 14.2 mm
- Body Height (mm/cm/m)
- 33.3 mm
- Body Size (mm/cm/m)
- 33.3 mm H x 31.8 mm W x 14.2 mm D
- Body Width (mm/cm/m)
- 31.8 mm
- Depth (mm/cm/m)
- 16.00 mm
- Maximum Service Temperature °C
- 120 °C
- Minimum Service Temperature °C
- -17.8 °C
- Minimum Wire Diameter (mm/cm/m)
- 4.76 mm
- Shackle Diameter (mm)
- 4.70 mm
- Shackle Horizontal Clearance (Metric)
- 17.00 mm
- Shackle Vertical Clearance (Metric)
- 106.68 mm
- Size - Width (mm)
- 32.00 mm
Body Coating/FinishReinforced Fiberglass
BrandedYes
Enables Industry ComplianceOSHA 1910.147
Includes(1) English Label; (1) French Label; (1) Key; (1) Padlock; (1) Spanish Label
Key OptionKeyed Different
Labels SuppliedYes
Manufacturer NameBrady®
Maximum Number of Different Keycodes15000
Number of Labels Included3
Primary Noun, Basic FunctionPadlock
Shackle Coating/FinishNon-Conductive Nylon
Text LegendDANGER LOCKED OUT
Brady Material NumberLOTO-77
MaterialRugged reinforced nylon body with Aluminum shackle
Padlock Body MaterialNylon
Body Depth (in/ft/yd)0.56 in
Body Height (in/ft/yd)1.31 in
Body Size (in/ft/yd)1.31 in H x 1.25 in W x 0.56 in D
Body Width (in/ft/yd)1.25 in
Cable Length (mm/cm/m)0.20
Dimensions (Metric)32.00 mm W x 16.00 mm D
Maximum Service Temperature °F250 °F
Minimum Service Temperature °F0 °F
Shackle Diameter0.16 in
Shackle Horizontal Clearance0.75 in
Shackle Vertical Clearance4.2 in
Shackle Width (mm)26.00 mm
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer and Reproductive Harm
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- No-Does Not Contain
CA Prop 65 Label WarningWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer and Reproductive Harm ChemicalLead
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
