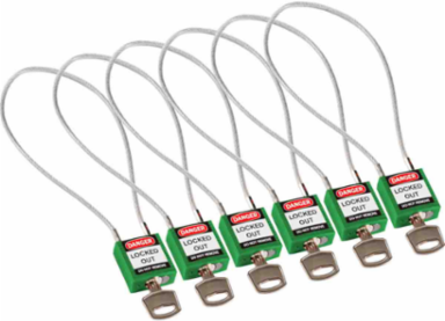

Brady 146135 Compact Cable Padlock - 5-Pin Cylinder, 8 Inch Shackle Clearance, Keyed Alike
- MPN: 146135
- UPC: 754473550059
- PPN: BRD-146135
- UNSPSC: 46171501
CAD
$267.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Featuring an elongated, flexible cable, these padlocks are more versatile than standard safety padlocks, providing a multi-purpose solution.
Features

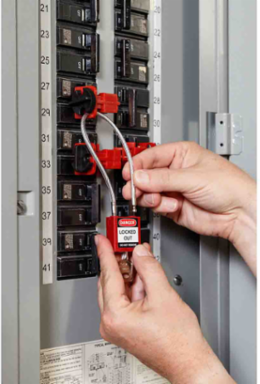

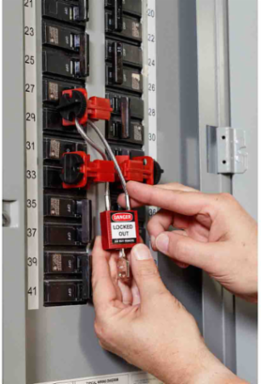

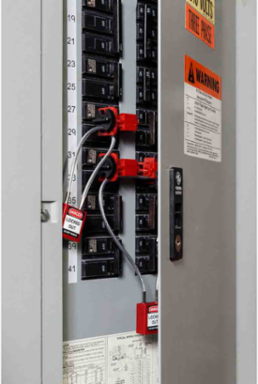

- Flexible cable allows for effective lockout in tight spaces such as breaker cabinets or simultaneous lockout of several energy isolation points.
- Angle and twist the padlock cable in tight application areas
- Complies with all OSHA requirements and makes it possible to secure several breaker lockouts simultaneously
- Every lock in this set can be opened with the same key, which is beneficial when multiple locks are assigned to a single employee
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Hazard Communication Identification |
|---|---|
| Brand Name | Brady® |
| Color | Green |
| Engraving | Yes |
| Key Mechanism | Standard Pin Tumbler |
| Key-Retaining | Yes |
| Language | English; French; Spanish |
| Manufacturer Part Number | 71/30CAB20 GREEN KA/6PK |
| Number of Keys Included | 6 |
| Number of Pin Tumblers | 5 |
| Reverse Legend | PROPERTY OF - PROPRIETE DE |
| Shackle Type | Open Shackle |
| Total Qty per Pack | 6 Piece(s) / Box |
| Conductive | No |
| Material Properties | Anti-spark, Non-conductive |
| Shackle Material | Steel |
| Body Depth (mm/cm/m) | 14.2 mm |
| Body Height (mm/cm/m) | 33.3 mm |
| Body Size (mm/cm/m) | 33.3 mm H x 31.8 mm W x 14.2 mm D |
| Body Width (mm/cm/m) | 31.8 mm |
| Depth (mm/cm/m) | 16.00 mm |
| Maximum Service Temperature °C | 120 °C |
| Minimum Service Temperature °C | -17.8 °C |
| Minimum Wire Diameter (mm/cm/m) | 4.76 mm |
| Shackle Diameter (mm) | 4.70 mm |
| Shackle Horizontal Clearance (Metric) | 17.00 mm |
| Shackle Vertical Clearance (Metric) | 203.20 mm |
| Size - Width (mm) | 32.00 mm |
| Body Coating/Finish | Reinforced Fiberglass |
|---|---|
| Branded | Yes |
| Enables Industry Compliance | OSHA 1910.147 |
| Includes | (6) English Labels; (6) French Labels; (6) Keys; (6) Padlocks; (6) Spanish Labels |
| Key Option | Keyed Alike |
| Labels Supplied | Yes |
| Manufacturer Name | Brady® |
| Maximum Number of Different Keycodes | 15000 |
| Number of Labels Included | 18 |
| Primary Noun, Basic Function | Padlock |
| Shackle Coating/Finish | Non-Conductive Nylon |
| Text Legend | DANGER LOCKED OUT |
| Brady Material Number | LOTO-77 |
| Material | Rugged reinforced nylon body with Aluminum shackle |
| Padlock Body Material | Nylon |
| Body Depth (in/ft/yd) | 0.56 in |
| Body Height (in/ft/yd) | 1.31 in |
| Body Size (in/ft/yd) | 1.31 in H x 1.25 in W x 0.56 in D |
| Body Width (in/ft/yd) | 1.25 in |
| Cable Length (mm/cm/m) | 0.40 |
| Dimensions (Metric) | 32.00 mm W x 16.00 mm D |
| Maximum Service Temperature °F | 250 °F |
| Minimum Service Temperature °F | 0 °F |
| Shackle Diameter | 0.16 in |
| Shackle Horizontal Clearance | 0.75 in |
| Shackle Vertical Clearance | 8 in |
| Shackle Width (mm) | 26.00 mm |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer and Reproductive Harm |
| Contains Heavy Metal(s) | Yes - Other Heavy Metals |
| EU RoHS Compliant | No |
| CA Prop 65 Label Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer and Reproductive Harm Chemical | Lead |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
