Brady 65595 Gate Valve Lockout Device, 2.78 Inch Diameter, Polypropylene, Hinged Lockout Type
Brady 65595 Gate Valve Lockout Device, 2.78 Inch Diameter, Polypropylene, Hinged Lockout Type
- MPN: 65595
- UPC: 754473655952
- PPN: BRD-65595
- UNSPSC: 39121909
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.23/ EA
Description

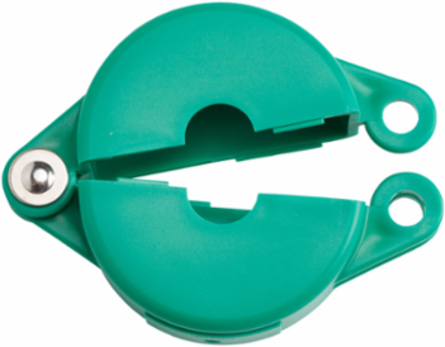

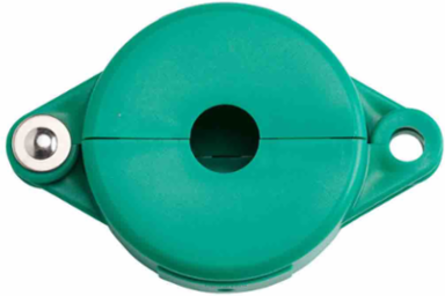

Gate valve lockout devices deny access and cover the valve handle. This device's unique knockout center fits OS&Y or "rising stem" valves.
Features
- Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
- Supplied with English, Spanish and French danger labels

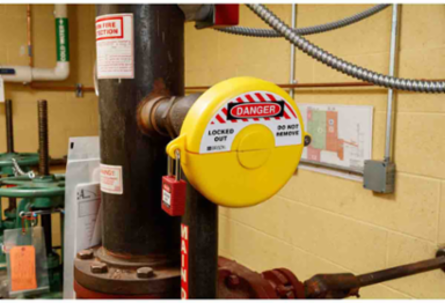

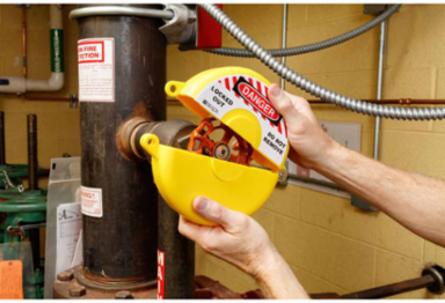

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Accepts padlock shackles up to 3/8 in. in diameter
Specifications
Specifications
- Brand Name
- Brady®
- Enables Industry Compliance
- OSHA 1910.147
- Labels Supplied
- Yes
- Maximum Number of Padlocks
- 1
- Risk Type
- Mechanical Risk
- Total Qty per Pack
- 1 Piece(s) / Pack
- Brady Material Number
- LOTO-7
- Material
- Polypropylene
- Depth (mm/cm/m)
- 35.90 mm
- Diameter (mm/cm/m)
- 70.61 mm
- Dimensions (Metric)
- 120.10 mm W x 80.00 mm H x 70.61 mm Dia x 35.90 mm D
- Hole Inside Diameter (mm/cm/m)
- 19.00 mm
- Lockout Height (mm/cm/m)
- 35.8 mm
- Lockout Width (mm/cm/m)
- 119.89 mm
- Maximum Service Temperature °F
- 302 °F
- Maximum Shackle Diameter (mm/cm/m)
- 9.53 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Rising Stem Knockout Hole Diameter (mm/cm/m)
- 19 mm
- Service Temperature Range °F
- -40 °F to 302 °F
- Size - W x H x D (mm)
- 120.10 x 80.00 x 35.90
- Valve Wheel Diameter (mm/cm/m)
- 25 - 64
ColorGreen
Gate Valve Lockout TypeHinged
LanguageEnglish; French; Spanish
Primary Noun, Basic FunctionLockout Device
Text LegendDANGER LOCKED OUT DO NOT REMOVE
Adhesive (Y/N)No
Lockout MaterialPolypropylene
SAP B-NumberLOTO-7
Diameter (in/ft/yd)2.78 in
Dimensions2.78 in Dia
Height (mm/cm/m)80.00 mm
Lockout Height (in/ft/yd)1.41 in
Lockout Width (in/ft/yd)4.72 in
Maximum Service Temperature °C150 °C
Maximum Shackle Diameter (in/ft/yd)0.375 in
Minimum Service Temperature °C-40 °C
Minimum Shackle Clearance (in/ft/yd)0.75 in
Rising Stem Knockout Hole Diameter (in/ft/yd).75 in
Service Temperature Range °C-40 °C to 150 °C
Sign Size-General2.78 in Dia
Size - Width (mm)120.10 mm
Valve Wheel Diameter Range (in/ft/yd)1 to 2.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
