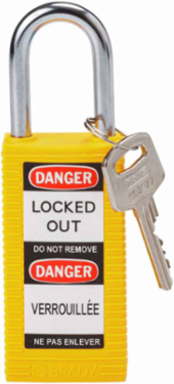

Brady 123408 Long Body Nylon Padlock - 6-Pin Cylinder, 1.5 Inch Shackle Clearance, Non-Conductive
- MPN: 123408
- UPC: 754473721800
- PPN: BRD-123408
- UNSPSC: 46171501
CAD
$35.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Nylon Padlocks have nonconductive fiberglass-reinforced nylon bodies and unique key cylinders that prevent electricity from traveling from the shackle to the key.
Features
- Lightweight, nonconductive and non-sparking body
- These lightweight padlocks comply with all OSHA requirements and offer superior temperature, chemical and corrosion resistance

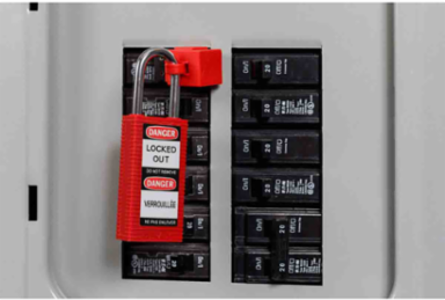

- Non-conductive nylon padlocks are a safer alternative to metal locks for lockout applications
- Reserved, paracentric keyway provides optimal security and the special design prevents the key from being released until the padlock shackle is closed
Specifications
Key Specifications
| Applications | Food and Beverage Process Labeling; Hazard Communication Identification; Lockout Tagout |
|---|---|
| Brand Name | Brady® |
| Enables Industry Compliance | OSHA 1910.147 |
| Key Mechanism | Standard Pin Tumbler |
| Key-Retaining | Yes |
| Manufacturer Name | Brady® |
| Number of Keys Included | 1 |
| Number of Pin Tumblers | 6 |
| Shackle Coating/Finish | Triple-Coated, Hardened |
| Material Properties | Anti-spark; Lightweight; Non-conductive |
| Shackle Material | Steel |
| Body Depth (mm/cm/m) | 20.3 mm |
| Body Height (mm/cm/m) | 76.2 mm |
| Body Size (mm/cm/m) | 76.2 mm H x 38.1 mm W x 20.3 mm D |
| Body Width (mm/cm/m) | 38.1 mm |
| Maximum Service Temperature °F | 250 °F |
| Minimum Service Temperature °F | 0 °F |
| Shackle Horizontal Clearance | 0.8 in |
| Body Coating/Finish | Reinforced Fiberglass |
|---|---|
| Color | Yellow |
| Includes | (1) English/French Label; (1) English/Spanish Label; (1) Key; (1) Padlock |
| Key Option | Keyed Different |
| Language | English; French; Spanish |
| Maximum Number of Different Keycodes | 15000 |
| Number of Labels Included | 2 |
| Primary Noun, Basic Function | Padlock |
| Shackle Type | Open Shackle |
| Padlock Body Material | Nylon |
| Body Depth (in/ft/yd) | 0.8 in |
| Body Height (in/ft/yd) | 3 in |
| Body Size (in/ft/yd) | 3 in H x 1.5 in W x 0.8 in D |
| Body Width (in/ft/yd) | 1.5 in |
| Maximum Service Temperature °C | 121.1 °C |
| Minimum Service Temperature °C | -17.8 °C |
| Shackle Diameter | 0.25 in |
| Shackle Vertical Clearance | 1.5 in |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer and Reproductive Harm |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
| CA Prop 65 Label Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer and Reproductive Harm Chemical | Lead |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
