Brady 51390 Universal Valve Lockout Device, 1 Inch Maximum Handle Width, 2.44 m Length, Industrial-Grade Material
- MPN: 51390
- UPC: 754473513900
- PPN: BRD-51390
- UNSPSC: 39121909
CAD
$104.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

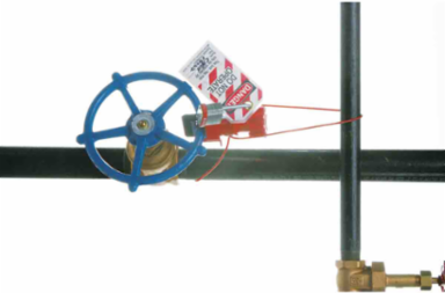

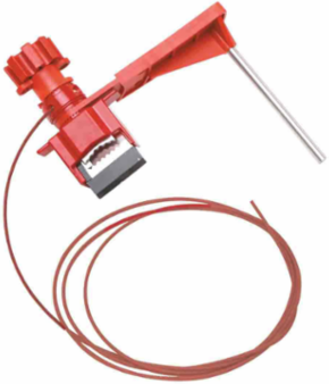

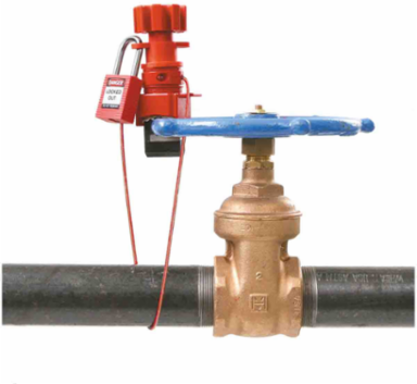

Lock out all types of valves with a single universal device! The universal valve lockout system from Brady® is rugged, easy to use and replaces the need for multiple devices.
Features
- Made of rugged industrial-grade steel and nylon for extra impact and chemical resistance
- Versatile open-ended clamp fits over most closed rings and wide handles
- Device can also lock out large levers, T handles and other hard-to-secure mechanical devices

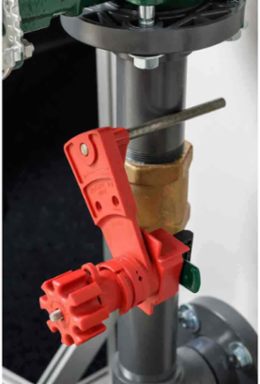

- Blocking arm (included) locks out quarter-turn ball values;add a second optional blocking arm (sold separately) to lock out 3-, 4- or 5-way valves
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Red |
| Country | EMEA |
| Maximum Number of Padlocks | 2 |
| Risk Type | Mechanical Risk |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Base Clamping Unit Material | Fiberglass Reinforced Nylon |
| Brady Material Number | LOTO-24 |
| Material | Brass; Fiberglass Reinforced Nylon; Stainless Steel |
| Base Clamping Unit Height (in/ft/yd) | 5.6 in |
| Blocking Arm Height (in/ft/yd) | 6.05 in |
| Blocking Arm Width (in/ft/yd) | 6.2 in |
| Cable Diameter (in/ft/yd) | 0.125 in |
| Cable Length (in/ft/yd) | 8 ft |
| Dimensions (Metric) | 157.50 mm W x 142.20 mm H x 2.44 m L |
| Maximum Handle Thickness (in/ft/yd) | 0.6 in |
| Maximum Handle Width (in/ft/yd) | 1 in |
| Maximum Service Temperature °C | 120 °C |
| Maximum Shackle Diameter (mm/cm/m) | 9.91 mm |
| Minimum Service Temperature °C | -20 °C |
| Minimum Wire Diameter (mm/cm/m) | 3.25 mm |
| Size - Width (mm) | 157.50 mm |
| Branded | Yes |
|---|---|
| Component Type | Cable Attachment |
| Enables Industry Compliance | OSHA 1910.147 |
| Primary Noun, Basic Function | Lockout Device |
| Steel Type | Industrial-Grade |
| Adhesive (Y/N) | No |
| Blocking Arm Material | Fiberglass Reinforced Nylon |
| Cable Material | Nylon |
| SAP B-Number | LOTO-24 |
| Base Clamping Unit Height (mm/cm/m) | 142.2 mm |
| Blocking Arm Height (mm/cm/m) | 153.7 mm |
| Blocking Arm Width (mm/cm/m) | 157.5 mm |
| Cable Diameter (mm/cm/m) | 3.18 mm |
| Cable Length (mm/cm/m) | 2.44 m |
| Height (mm/cm/m) | 142.20 mm |
| Maximum Handle Thickness (mm/cm/m) | 15.24 mm |
| Maximum Handle Width (mm/cm/m) | 25.40 mm |
| Maximum Shackle Diameter (in/ft/yd) | 0.39 in |
| Maximum Wire Diameter (mm/cm/m) | 3.25 mm |
| Minimum Shackle Clearance - (mm/cm/m) | 20.00 mm |
| Size - Length (m) | 2.44 m |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
