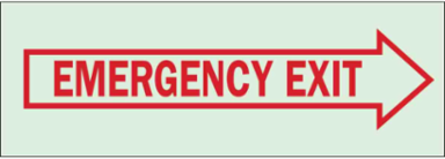

Brady 80276 BradyGlo Emergency Exit Sign, 5 Inch H x 14 Inch W, Glow in the Dark, Right Arrow
Brady 80276 BradyGlo Emergency Exit Sign, 5 Inch H x 14 Inch W, Glow in the Dark, Right Arrow
- MPN: 80276
- UPC: 754473802769
- PPN: BRD-80276
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$50.92/ EA
Description
BradyGlo™ Glow-In-The-Dark Plastic (B-347) features high performance photoluminescence material that is 100% reliable and virtually maintenance free.
Features
- Compliant to NFPA Life Safety Code 101 and 2015 IBC/IFC Regulation, OSHA 1910.37, NYC and current building codes
- Energy efficient, non-electric, nontoxic, non-radioactive and may qualify for LEED credits
- 50 ft. visibility allows for maximum effectiveness in low light or dark environments
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Specifications
Specifications
- Arrow Direction
- Right
- Calculated Sign Shape
- Horizontal Rectangle
- Enables Industry Compliance
- ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145
- Image or Text
- Image & Text
- Meets Industry Standards - Signs
- ANSI Z53.1-1967
- Number of Printed Sides
- 1
- PSPA Photoluminescence Class
- Class A
- Shape
- Rectangle
- Trade Name
- BradyGlo™
- Write-On Area
- No
- Illumination
- Glow in the Dark
- Material Properties
- Photoluminescent; Rigid
- SAP B-Number
- B-347
- Depth (mm/cm/m)
- 1.6 mm
- Dimensions (Metric)
- 127 mm H x 1.6 mm D
- Height (in/ft/yd)
- 5 in
- Maximum Service Temperature °C
- 70 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size
- 5 in H x 14 in W x 0.063 in D
- Thickness (in/ft/yd)
- 0.063 in
- Width (in/ft/yd)
- 14 in
Brand NameBrady®
ColorRed on Glow
FinishGloss
LanguageEnglish
Mounting TypeCorner Holes
Primary Noun, Basic FunctionSign
Reflective TypeNon-Reflective
Text LegendEMERGENCY EXIT
Write-OnNo
Brady Material NumberB-347
MaterialPhosphorescent Polyester Laminated Polystyrene
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant
Depth (in/ft/yd)0.063 in
Dimensions5 in H x 14 in W x 0.063 in D
Dimensions 25 in H x 14 in W
Height (mm/cm/m)127 mm
Maximum Service Temperature °F158 °F
Minimum Service Temperature °F-40 °F
Sign Size-General5 in x 14 in
Thickness (mm/cm/m)1.6 mm
Width (mm/cm/m)35.56 cm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
