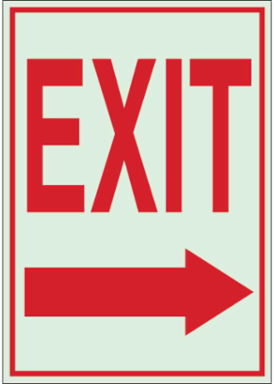

Brady 80217 BradyGlo Exit Sign, 10 Inch H x 7 Inch W, Photoluminescent Polyester, Self-Adhesive
- MPN: 80217
- UPC: 754473802172
- PPN: BRD-80217
- UNSPSC: 55121704
CAD
$28.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-324 BradyGlo™ material is a glow-in-the-dark (photoluminescent) pressure sensitive polyester.
Features
- B-324 is ideal for exit and directional signs, identification of fire alarms and extinguishers
- Photoluminescent material charges in 5 minutes at 1000 Lux for 10+ hours of glow time
- Consistent glow life and unlimited rechargability
- Service temperature of -40 to 176° F
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Red on Glow
- Enables Industry Compliance
- ASTM D 523; ASTM E 162; ASTM E 2072-00; ASTM E 2073-00; ASTM E 648; ASTM E 662; DIN 67510; IMO Resolution A.752(18); ISO/CD 15370; Lloyd's Register SAS F050294.p; OSHA 29 CFR 1910.37
- Language
- English
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Sign
- Reflective Type
- Non-Reflective
- Text Legend
- EXIT
- Adhesive Type
- Permanent Acrylic
- Illumination
- Glow in the Dark
- Material
- Photoluminescent Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.008 in
- Dimensions
- 10 in H x 7 in W x 0.008 in D
- Dimensions 2
- 10 in H x 7 in W
- Height (mm/cm/m)
- 25.4 cm
- Maximum Service Temperature °F
- 176 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 10 in x 7 in
- Thickness (mm/cm/m)
- 0.201 mm
- Width (mm/cm/m)
- 177.8 mm
Calculated Sign ShapeVertical Rectangle
Compatible Surface TypesHigh Surface Energy
Image or TextImage & Text
Meets Industry Standards - SignsASTM D 523
Number of Printed Sides1
PSPA Photoluminescence ClassClass II
ShapeRectangle
Trade NameBradyGlo™
Brady Material NumberB-324
Label PropertiesGlow in the Dark Labels
Material PropertiesExplosion-safe; Photoluminescent
SAP B-NumberB-324
Depth (mm/cm/m)0.2 mm
Dimensions (Metric)25.4 cm H x 0.2 mm D
Height (in/ft/yd)10 in
Maximum Service Temperature °C80 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Sign Size10 in H x 7 in W x 0.008 in D
Thickness (in/ft/yd)0.0079 in
Width (in/ft/yd)7 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Unavailable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
