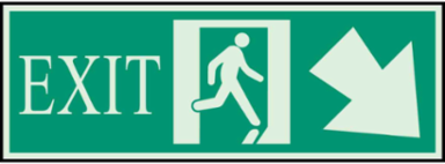

Brady 90920 BradyGlo Glow-in-the-Dark Exit Sign, 5 Inch H x 14 Inch W, Photoluminescent, Energy Efficient
Brady 90920 BradyGlo Glow-in-the-Dark Exit Sign, 5 Inch H x 14 Inch W, Photoluminescent, Energy Efficient
- MPN: 90920
- UPC: 754473909208
- PPN: BRD-90920
- UNSPSC: 55121704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$50.92/ EA
Description
BradyGlo™ Glow-In-The-Dark Plastic (B-347) features high performance photoluminescence material that is 100% reliable and virtually maintenance free.
Features
- Compliant to NFPA Life Safety Code 101 and 2015 IBC/IFC Regulation, OSHA 1910.37, NYC and current building codes
- Energy efficient, non-electric, nontoxic, non-radioactive and may qualify for LEED credits
- 50 ft. visibility allows for maximum effectiveness in low light or dark environments
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Specifications
Specifications
- Brand Name
- Brady®
- Color
- Green on Glow
- Finish
- Gloss
- Language
- English
- Mounting Type
- Corner Holes
- Primary Noun, Basic Function
- Sign
- Reflective Type
- Non-Reflective
- Text Legend
- EXIT
- Brady Material Number
- B-347
- Material
- Phosphorescent Polyester Laminated Polystyrene
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.063 in
- Dimensions
- 5 in H x 14 in W x 0.063 in D
- Dimensions 2
- 5 in H x 14 in W
- Height (mm/cm/m)
- 127 mm
- Maximum Service Temperature °F
- 158 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 5 in x 14 in
- Thickness (mm/cm/m)
- 1.6 mm
- Width (mm/cm/m)
- 35.56 cm
Calculated Sign ShapeHorizontal Rectangle
Enables Industry ComplianceASTM D 523; ASTM E 162; ASTM E 2072-00; ASTM E 2073-00; ASTM E 648; ASTM E 662; DIN 67510; IMO Resolution A.752(18); ISO/CD 15370; OSHA 29 CFR 1910.37
Image or TextImage & Text
Meets Industry Standards - SignsASTM D 523
Number of Printed Sides1
PSPA Photoluminescence ClassClass A
ShapeRectangle
Trade NameBradyGlo™
IlluminationGlow in the Dark
Material PropertiesPhotoluminescent; Rigid
SAP B-NumberB-347
Depth (mm/cm/m)1.6 mm
Dimensions (Metric)127 mm H x 1.6 mm D
Height (in/ft/yd)5 in
Maximum Service Temperature °C70 °C
Minimum Service Temperature °C-40 °C
Sign Size5 in H x 14 in W x 0.063 in D
Thickness (in/ft/yd)0.063 in
Width (in/ft/yd)14 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
