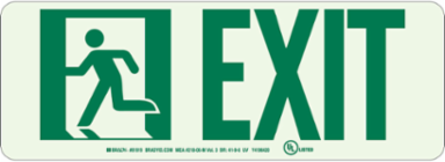

Brady 81919 BradyGlo Exit Sign with Running Man Left, 5 Inch x 14 Inch, Glow in the Dark
- MPN: 81919
- UPC: 754473819194
- PPN: BRD-81919
- UNSPSC: 55121704
CAD
$26.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
BradyGlo™ High Intensity Polyester (B-523) provides high adhesion and luminance for egress marking in low light areas in and along stairwells of public buildings.
Features
- Non-toxic, non-radioactive, explosion-safe material features an aggressive pressure-sensitive synthetic rubber adhesive
- Complies with RS 6-1 and 6-1A of New York Local Law 26 including photoluminescence, washability, flammability, toxic gas generation and radioactivity
- Approved Model Numbers Accepted For Use, City of New York, Department of Buildings: MEA No. 218-05-M Vol. 3 BR: 41-9-6 UV
- Service temperature of -40°F to 176°F (-40°C to 80°C)
Documentation & Downloads
Specifications
Key Specifications
- Brand Name
- Brady®
- Color
- Green on Glow
- Enables Industry Compliance
- MEA Approved; UL 1994; UL Listed for US
- Image or Text
- Image & Text
- Mounting Type
- Self-Adhesive
- Primary Noun, Basic Function
- Sign
- PSPA Photoluminescence Class
- Class II
- Shape
- Rectangle
- Trade Name
- BradyGlo™
- Brady Material Number
- B-523
- Label Properties
- Permanent Adhesive Labels
- Material
- Phosphorescent Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Depth (in/ft/yd)
- 0.0096 in
- Dimensions
- 5 in H x 14 in W x 0.0096 in D
- Dimensions 2
- 5 in H x 14 in W
- Height (mm/cm/m)
- 127 mm
- Maximum Service Temperature °F
- 176 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 5 in x 14 in
- Thickness (mm/cm/m)
- 0.239 mm
- Width (mm/cm/m)
- 35.56 cm
Calculated Sign ShapeHorizontal Rectangle
Compatible Surface TypesLow Surface Energy
FinishGloss
Meets Industry Standards - SignsMEA Approved
Number of Printed Sides1
Printer and Label ApplicationsGeneral Identification; Lean / 5S; Safety
Reflective TypeNon-Reflective
Text LegendEXIT
Adhesive TypePermanent Synthetic Rubber
IlluminationGlow in the Dark
LaminatedLaminated
Material PropertiesExplosion-safe; Photoluminescent
SAP B-NumberB-523
Depth (mm/cm/m)0.24 mm
Dimensions (Metric)127 mm H x 0.24 mm D
Height (in/ft/yd)5 in
Maximum Service Temperature °C80 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Sign Size5 in H x 14 in W x 0.0096 in D
Thickness (in/ft/yd)0.0094 in
Width (in/ft/yd)14 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
