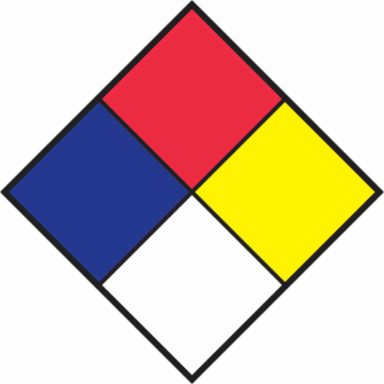

Brady 58274 Bradylite Reflective NFPA Diamond Sign 10 Inch x 10 Inch Outdoor Use
- MPN: 58274
- UPC: 754473582746
- PPN: BRD-58274
- UNSPSC: 55121725
CAD
$328.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
B-997 Bradylite® is a reflective sheeting backed with a pressure sensitive adhesive.
Features
- This B-997 material is used for utility plant markings applied outdoors in cold climates
- Specifically designed to be applied at cold temperatures and has excellent weatherability
- Service temperature range of -40 to 200° F
- Average outdoor durability of 4-6 years
Documentation & Downloads
Specifications
Key Specifications
| Applications | Facility Identification |
|---|---|
| Calculated Sign Shape | Diamond |
| Compatible Surface Types | High Surface Energy |
| Finish | Gloss |
| Meets Industry Standards - Signs | Globally Harmonized System (GHS) |
| Number of Printed Sides | 1 |
| Primary Noun, Basic Function | Sign |
| PSPA Photoluminescence Class | Not Illuminated |
| Shape | Diamond |
| Trade Name | Bradylite |
| Write-On Area | No |
| Adhesive Type | Permanent Acrylic |
| Illumination | Not Illuminated |
| Label Properties | Aggressive Adhesive Labels; Permanent Adhesive Labels |
| Material | Reflective Sheeting |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant |
| Dimensions | 10 in H x 10 in W |
| Dimensions 2 | 10 in H x 10 in W |
| Height (mm/cm/m) | 254.00 mm |
| Maximum Service Temperature °F | 199 °F |
| Minimum Application Temperature °F | -17 °F |
| Minimum Service Temperature °F | -40 °F |
| Sign Size-General | 10 in x 10 in |
| Thickness (in/ft/yd) | 0.0071 in |
| Width (in/ft/yd) | 10 in |
| Brand Name | Brady® |
|---|---|
| Color | Black/Blue/Red/White/Yellow |
| Enables Industry Compliance | Globally Harmonized System (GHS); NFPA 704; OSHA 1910.1200 |
| Image or Text | Image Only |
| Mounting Type | Self-Adhesive |
| PIC nr | PIC 667 |
| Printer and Label Applications | General Identification |
| Reflective Type | Engineer-Grade |
| Total Qty per Pack | 1 Kit / Kit |
| Write-On | No |
| Adhesive (Y/N) | Yes |
| Brady Material Number | B-997 |
| Indoor or Outdoor Use | Outdoor Use |
| Laminated | Not Laminated |
| Material Properties | Reflective |
| SAP B-Number | B-997 |
| Dimensions (Metric) | 254.00 mm W x 254.00 mm H |
| Height (in/ft/yd) | 10 in |
| Maximum Service Temperature °C | 93 °C |
| Minimum Application Temperature °C | -27 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size | 10 in H x 10 in W |
| Size - Width (mm) | 254.00 mm |
| Thickness (mm/cm/m) | 0.18 mm |
| Width (mm/cm/m) | 254.00 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | No |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
