Brady LSZH-C-375-WT PermaSleeve Heat Shrink Tubing, 0.375 Inch Dia x 75 ft L, Low Smoke, Chemical Resistant
Brady LSZH-C-375-WT PermaSleeve Heat Shrink Tubing, 0.375 Inch Dia x 75 ft L, Low Smoke, Chemical Resistant
- MPN: LSZH-C-375-WT
- UPC: 754473941840
- PPN: BRD-LSZH-C-375-WT
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$256.11/ EA
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer printing and is ideal for use in wire identification.
Features
- Suitable for use in applications that require low smoke, halogen free, flame retardant markers
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Shrink Ratio
- 2:1
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- SAP B-Number
- B-7641
- Diameter as Supplied (mm/cm/m)
- 9.5 mm

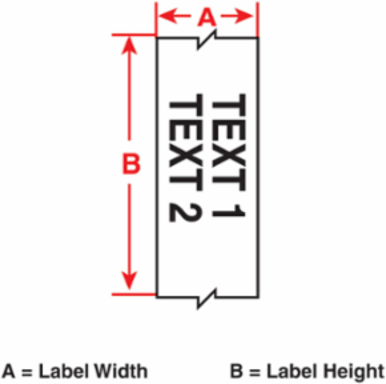

- Dimensions (Metric)
- 16.4 mm H
- Height (in/ft/yd)
- 0.645 in
- Inside Core Diameter (in/ft/yd)
- 1.625 in
- Maximum Service Temperature °F
- 221 °F
- Maximum Wire Diameter (mm/cm/m)
- 8.1 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.188 in
- Minimum Wire Gauge
- 8 AWG
- Recovered Diameter (mm/cm/m)
- 4.8 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.71 mm
- Roll Length (mm/cm/m)
- 22.86 m
- Sleeve Size (mm/cm/m)
- 9.5 mm Dia x 22.86 m L
- Wire Gauge Range
- 8 AWG to 4 AWG
Brand NameBrady®
Enables Industry ComplianceBS6853 (1999) Vehicle Category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Method 215K; MIL-STD-202G; RoHS Compliant
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Recommended RibbonR6406
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Brady Material NumberB-7641
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Self-Extinguishing; Smear-Resistant
Diameter as Supplied (in/ft/yd)0.375 in
Dimensions0.645 in H
Dimensions 20.645 in H
Height (mm/cm/m)16.4 mm
Maximum Service Temperature °C105 °C
Maximum Wire Diameter (in/ft/yd)0.32 in
Maximum Wire Gauge4 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)4.8 mm
Recovered Diameter (in/ft/yd)0.189 in
Recovered Wall Thickness (in/ft/yd)0.028 in
Roll Length (in/ft/yd)75 ft
Sleeve Size (in/ft/yd)0.375 in Dia x 75 ft L
Wire Diameter Range0.188 in to 0.32 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
