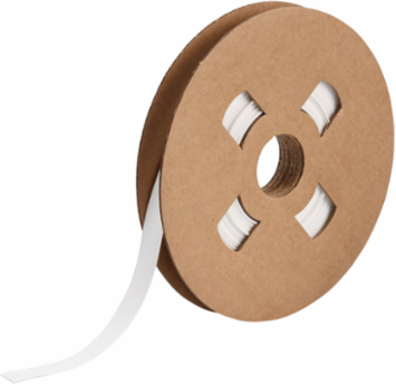

Brady HT-C-375-WT PermaSleeve Heat-Shrink Tubing, 0.375 Inch Dia x 75 ft L, White

MPN: HT-C-375-WT
UPC: 662820998402
PPN: BRD-HT-C-375-WT
UNSPSC: 55121612

$649.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.

Features

2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662;RoHS Compliant;and UL Recognized
Operating temperature range of -67 to 437° F (-55 to 225° C)

Documentation & Downloads

Specifications

Key Specifications

Applications	Wire and Cable Labeling
Color	White
Finish	Matte
Label/Media Format	Roll
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP72
Ribbon Series	R6000HF
Shrink Ratio	2:1
Total Qty per Pack	1 Roll(s) / Roll
Adhesive (Y/N)	No
Indoor or Outdoor Use	Outdoor Use
Material	High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve
Resistance Properties	Chemical-Resistant; Gasoline-Resistant; Smear-Resistant
Diameter as Supplied (in/ft/yd)	0.375 in
Dimensions	0.645 in H
Dimensions 2	0.645 in H
Height (mm/cm/m)	16.4 mm
Maximum Service Temperature °F	437 °F
Maximum Wire Diameter (mm/cm/m)	8.13 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.188 in
Minimum Wire Gauge	8 AWG
Recovered Diameter (mm/cm/m)	4.8 mm
Recovered Wall Thickness (mm/cm/m)	0.38 mm
Roll Length (mm/cm/m)	22.86 m
Size - Width (mm)	16.38 mm
Sleeve Size (mm/cm/m)	9.5 mm Dia x 22.86 m L
Wire Gauge Range	8 AWG to 4 AWG

Brand Name	Brady®
Enables Industry Compliance	Method 215K; MIL-STD-202G; SAE-AMS-DTL-23053/18 (Class 2) for Insulation Sleeving; SAE-AS-81531 Marking of Electrical Insulating Materials
For Use with Printer	BBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic Function	Heat Shrink Tubing
Printable Sides	Single-Side Printable
Printer Compatibility	BBP72
Recommended Ribbon	R6006
Shape	Continuous
Suggested Ribbon Series	R6000 Halogen Free; R6600
Trade Name	PermaSleeve®
Brady Material Number	B-345
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable
SAP B-Number	B-345
Diameter as Supplied (mm/cm/m)	9.5 mm
Dimensions (Metric)	16.38 mm W x 16.4 mm H x 22.86 m L
Height (in/ft/yd)	0.645 in
Maximum Service Temperature °C	225 °C
Maximum Wire Diameter (in/ft/yd)	0.32 in
Maximum Wire Gauge	4 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	4.78 mm
Recovered Diameter (in/ft/yd)	0.188 in
Recovered Wall Thickness (in/ft/yd)	0.015 in
Roll Length (in/ft/yd)	75 ft
Size - Length (m)	22.86 m
Sleeve Size (in/ft/yd)	0.375 in Dia x 75 ft L
Wire Diameter Range	0.188 in to 0.32 in

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	No - Does not contain
EU RoHS Compliance	Pass 2011/65/EU
SDS Safety Data Sheet required	No = MSDS/SDS is not required
