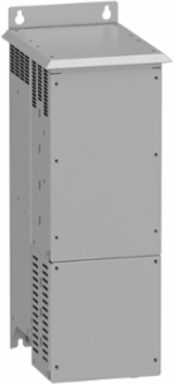

Schneider Electric VW3A7105 Altivar Braking Unit, 100kW, 400/480V, IP20, 28kg
- MPN: VW3A7105
- PPN: SCH-VW3A7105
- UNSPSC: 39122004
CAD
$4169.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 2.5Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 28kg.
Features
- For variable speed drives
- Integrated thermal protection by thermal probe
- 400W thermal loss
- IP20 and IP21 degree of protection
- Wide range of operating temperature from -10°C to 50°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 303 mm |
|---|
Complementary Attributes
| Maximum Braking Power | 160 kW |
|---|---|
| Minimum Resistor Value To Associate | 2.5 Ohm |
| Maximum Dc Bus Voltage | 850 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Mechanical Robustness | vibrations class 3M4 IEC 60721-3-3 |
| Permanent Braking Power | 100 kW at constant power and at engage threshold) |
| Protection Type | integrated thermal protection thermal probe |
| Sustainable Packaging | No |
| Volume Of Cooling Air | 166 m3/h |
| Width Nominal | 216 mm |
| Customs Code | 8504909650 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1851 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Load Factor | 0.05 320 kW at constant power and at engage threshold0.15 250 kW at constant power and at engage threshold0.5 200 kW at constant power and at engage threshold1 160 kW at constant power and at engage threshold |
| Operating Position | vertical +/- 10 degree |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Thermal Losses | 400 W |
| Height Nominal | 658 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-50 °C, -10-50 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20IP21 on top) |
| Packaging Without Single Use Plastic | No |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Product Compatibility | variable speed drive ATV930 without braking chopper 110 kW 380...480 V, variable speed drive ATV930 without braking chopper 130 kW 380...480 V, variable speed drive ATV930 without braking chopper 160 kW 380...480 V |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
