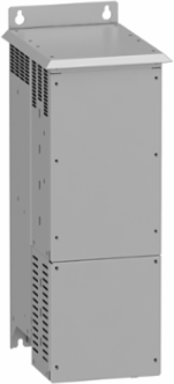

Schneider Electric VW3A7106 Altivar Braking Unit 60 kW 200/240V, 216mm Width, 15.5kg Weight
- MPN: VW3A7106
- PPN: SCH-VW3A7106
- UNSPSC: 26111503
CAD
$4169.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This braking unit from Schneider Electric is engineered to deliver exceptional performance in a variety of automation and control applications. Designed for use with variable speed drives, it efficiently manages braking energy, enhancing the overall functionality of motors operating at 60 kW and between 200 to 240 volts. With its compact dimensions of 216mm in width, this unit is ideal for installations where space is a consideration, ensuring seamless integration into existing systems while maintaining operational effectiveness. Weighing 15.5kg, it strikes a balance between robust construction and manageable handling, making it a valuable addition to any setup requiring reliable braking solutions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 303 mm |
|---|
Complementary Attributes
| Maximum Braking Power | 80 kW |
|---|---|
| Minimum Resistor Value To Associate | 1.4 Ohm |
| Maximum Dc Bus Voltage | 450 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Mechanical Robustness | vibrations class 3M4 IEC 60721-3-3 |
| Permanent Braking Power | 60 kW at constant power and at engage threshold) |
| Protection Type | integrated thermal protection thermal probe |
| Sustainable Packaging | No |
| Volume Of Cooling Air | 166 m3/h |
| Width Nominal | 216 mm |
| Customs Code | 8504909650 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1851 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Load Factor | 0.05 150 kW at constant power and at engage threshold0.15 120 kW at constant power and at engage threshold0.5 95 kW at constant power and at engage threshold1 75 kW at constant power and at engage threshold |
| Operating Position | vertical +/- 10 degree |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Thermal Losses | 400 W |
| Height Nominal | 658 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-50 °C, -10-50 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20IP21 on top) |
| Packaging Without Single Use Plastic | No |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Product Compatibility | variable speed drive ATV930 without braking chopper 55 kW 200...240 V, variable speed drive ATV930 without braking chopper 75 kW 200...240 V |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
