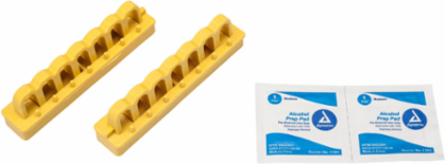

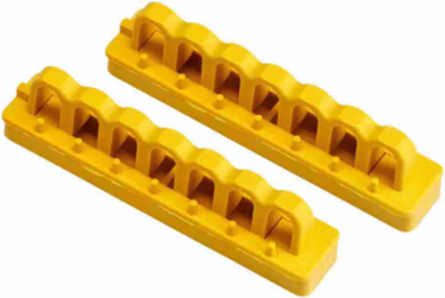

Brady 51264 Breaker Blocker Lockout Device - 4 Inch Yellow Mounting Rails, 2 Pieces, 480/600 V
- MPN: 51264
- UPC: 754473512644
- PPN: BRD-51264
- UNSPSC: 39121901
CAD
$34.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

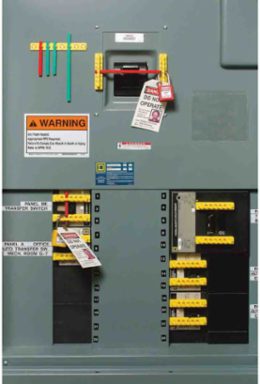

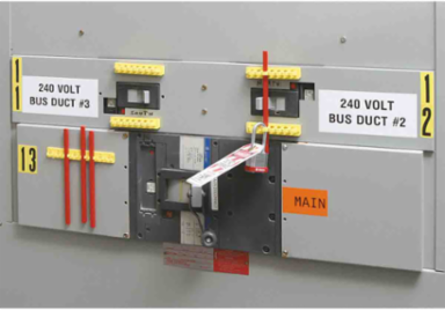

Self-adhesive backed rails for the 480-600V Breaker Blocker are permanently installed into electrical panels - simply clean panel surface and adhere - no drilling required!
Documentation & Downloads
Specifications
Key Specifications
- Accessory Type
- Mounting Rail
- Color
- Yellow
- Maximum Number of Padlocks
- 7
- Risk Type
- Electrical Risk
- Trade Name
- Breaker Blocker
- Adhesive Type
- Permanent Acrylic
- Material
- Fiberglass Reinforced Nylon
- Depth (mm/cm/m)
- 9.14 mm
- Height (mm/cm/m)
- 20.32 mm
- Maximum Shackle Diameter (in/ft/yd)
- 0.31 in
- Rail Depth (in/ft/yd)
- 0.7 in
- Rail Length (in/ft/yd)
- 4 in
- Rail Width (in/ft/yd)
- 0.8 in
- Size - Length (mm)
- 101.60 mm
- Size - Width (mm)
- 101.60 mm
Brand NameBrady®
For Use WithCircuit Breakers
Primary Noun, Basic FunctionLockout Device
Total Qty per Pack2 Piece(s) / Pack
Adhesive (Y/N)Yes
Brady Material NumberLOTO-44
SAP B-NumberLOTO-44
Dimensions (Metric)101.60 mm W x 20.32 mm H x 101.60 mm L x 9.14 mm D
Maximum Service Temperature °C120 °C
Minimum Service Temperature °C-20 °C
Rail Depth (mm/cm/m)17.78 mm
Rail Length (mm/cm/m)101.6 mm
Rail Width (mm/cm/m)20.32 mm
Size - W x H x D (mm)101.60 x 20.32 x 9.14
Voltage480/600 V
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- Contains 3TG Mineral
- No-Does Not Contain
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
