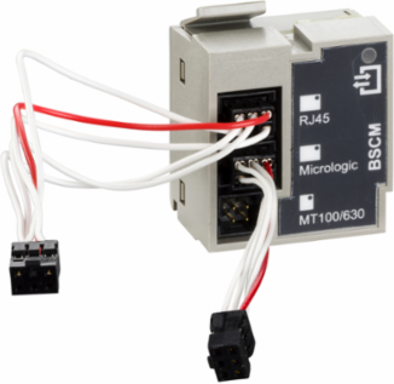

Schneider Electric LV434205 Breaker Status Control Module, ComPact NSX, 24 VDC
- MPN: LV434205
- PPN: SCH-LV434205
CAD
$168.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
LV434205 is a breaker status control module for Compact 24 V DC. This module is a communication module for NSX100-250, Compact NSX & PowerPact Multistandard. The optional BSCM Breaker Status & Control Module is used to acquire device status indications and control the communicating remote-control function. It includes a memory used to manage the maintenance indicators. The BSCM can be used to carry out communicating remote control operations using the communicating motor operator (open, close and reset) in different modes (manual, auto). The BSCM is installed inside the circuit breaker behind the front cover. It is connected to external Ethernet or Modbus interfaces (IFE/IFM) via the NSX cord terminal block. The BSCM operational voltage is 24 VDC.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Function Of Module | control circuit breaker, get breaking status |
| Carbon Footprint Of The Distribution Phase [A4] | 0.011429, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.06354, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.234 |
| Local Publishable Date | 2026-07-03 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | DPIBS |
| Manufacturing Carbon Footprint | 2.1755 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | communication module |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Enerlin'X is used to acquire device status indications and control the communicating remote-control function, also a memory used to manage the maintenance, and NSX cord is to connect ComPacT NSX to the ULP devices (FDM121 display, IFM, IFE or I/O) unit for 10 years. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 42.048 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| [Us] Rated Supply Voltage | 24 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] | 2.1716 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 2.1755 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 27.813 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 26.519 |
| Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] | 48.941 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 2.9192 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] | -0.421 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 2.4796 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 1.2769 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 523.39 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 84.313 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.2769 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 439.07 |
| Customs Code | 8517620090 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.091351 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 2.1755 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | Relay, Control & Measurement - gateway |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Use Carbon Footprint | 17.234 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2306004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Device Short Name | breaker status control module |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | ComPact |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 20 kg CO2 eq. |
| Pep Code | ENVPEP2306004EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 4 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 36.000 g |
| Warranty (In Months) | 18 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 17.211 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 17.234 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 439.07 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 185.6 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 9.6788 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 25.624 |
| Non-hazardous Waste Disposed Of (Kg) Installation [A5] | 0.2067 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 1.2769 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 28.703 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 1.0425 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 1.2769 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 26.536 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 84.313 |
| Other Technical Guide Name | ESXP1G003EN |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2306004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 19.57582 |
| Environmental Disclosure | ENVPEP2306004EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2306004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | ComPact NSX100...250, ComPact NSX400...630 |
|---|
| Product Or Component Type | communication module |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
