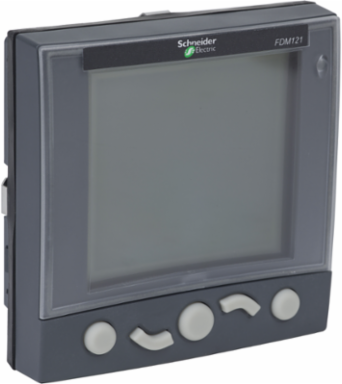

Square D STRV00121 Front Display Module 121 for PowerPact Circuit Breakers with Tightening Torque 0.8 Nm

MPN: STRV00121
UPC: 785901946021
PPN: SCH-STRV00121

$2618.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This is a display module for MasterPact and PowerPact circuit breakers. This is a display and signaling accessory. This accessory works in conjunction with FDM121, 1 circuit breaker to 1 front display over ULP. This product complies with UL standards. This product is a front mounted device. With a tightening torque of 0.8-0.8 Nm, and a cable cross section of 0.2-1.5 mm² and AWG gauge of AWG 24 / AWG 16

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	PowerPact H, PowerPact J, PowerPact L, PowerPact P, PowerPact R, MasterPact MTZ, MasterPact NT, MasterPact NW
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2305023EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1920
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Energy Efficiency Optimized	False
Mounting Mode	front
Product Or Component Type	display module
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	226.796 g
Take-back	No
Customs Code	8531200020

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Accessory / Separate Part Category	display and signalling accessory, trip unit accessory
Local Publishable Date	2025-11-13
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	2
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	3
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Mounting Location	front
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Tightening Torque	0.8-0.8 N.m 0.2-1.5 mm² (24 AWG...16 AWG)
Pep Code	ENVPEP2305023EN
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Product contains halogen above thresholds
Mercury Free	Yes
Circularity Profile	ENVEOLI2305023EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Silicon Free	No
Environmental Disclosure	ENVPEP2305023EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2305023EN
