NuTone LP80 Broan® LoProfile™ 80 CFM Ventilation Fan, 1.0 Sones; ENERGY STAR® Certified
- MPN: LP80
- UPC: 026715203475
- PPN: BRO-LP80
CAD
$178.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

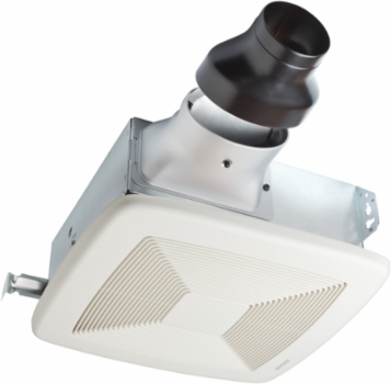

The LP80 LoProfile fan is designed for installations where conventional ventilation simply won't fit. When a multi-family application requires it, the LoProfile fan is narrow enough to be installed in a wall between 2 x 4 studs. When plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications, the LoProfile fan can still fit without having to move anything, and that means most any room with space constraints can have powerful, quiet, efficient ventilation. In residential garage applications, use the LP80 to get rid of heat, humidity and unwanted smells. Mount in the wall between 2 x 4 studs and easily duct to a wall cap. (Wall cap and ducting not included.)
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it's on
- 4" oval or 3" round duct connection for installation flexibility, allows for ceiling or wall mounting
- ENERGY STAR® Certified efficient operation for lower utility bills
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.

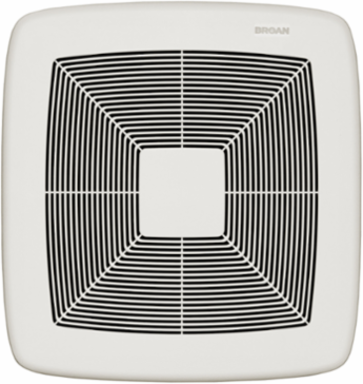

- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
- Fight heat, humidity buildup and unwanted smells inside the garage
- Ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Quiet exhaust fan with light blends into surrounding décor
- Powerful enough for rooms (including bathroom) up to 75 sq. ft.
- Easy to install and/or replace existing product for DIY'ers
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Duct Diameter
- 4
- Grille Width (In)
- 13.75
- Length
- 10.5 in.
- Weight
- 9 lbs.
- Contain Chemical/Solvent
- No
- Contain Mercury
- No
- Manufacturer Warranty
- 1 Year
- Series
- LoPro/EZ Fit
- Amperage (Amps)
- 0.3
- Built In Timer
- No
- Certification File No.
- E17814
- Damper Included
- No
- Duct Direction
- Horizontal/Vertical
- Frequency (Hz)
- 60
- Grille Material
- Plastic
- Hardware Included
- Yes
- Humidity Sensing
- No
- Light (Built In)
- No
- Lighted
- No
- Motion Sensing
- No
- Nightlight
- No
- Radiation Damper Available
- Yes
- Retail Peggable
- No
- Selectable Speed
- No

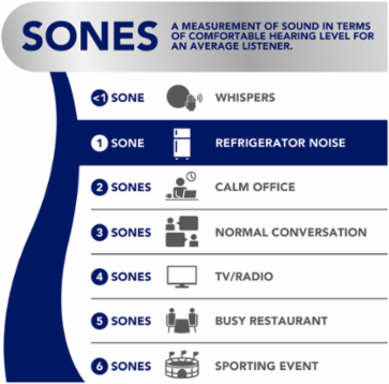

- Sones
- 1
- Wall Control Included
- No
Height4 in.
Length13 in.
Housing Height (In)4
Housing Width (In)11.375
Width13.75 in.
Contain Electronic EquipmentYes
Contain WoodNo
Primary ColorWhite
Voltage120
Automatic Shut OffNo
Ceiling OnlyNo
CFM (HVI)80
DecorativeNo
Duct ShapeOval
Globe MaterialN/A
Grille ShapeRectangle
Housing MaterialGalvanized
Installation TypeCeiling;Wall
Light DimmableNo
Minimum Construction Space Required2" x 4"
Multi-SpeedNo
Product Switch Control TypeWall Control
Recommended Room Size (Sq Ft)75
Room Side Installation PossibleNo
Sones Max RatingN/A
Type ICNo
Certifications
- CSA Listed
- No
- ETL Listed
- No
- ISTA Rating
- ISTA - 1A
- AMCA Certification
- No
- cETL Listed
- No
- ENERGY STAR Certified
- Yes
- IC Certification
- No
- UL Listed For Use Over Tub & Shower With GFCI
- Yes
cUL ListedYes
HVI CertifiedYes
UL ListedYes
BQB CertificationNo
cULus ListedYes
FCC CertificationNo
Title 24 CompliantYes
Warnock Hersey CertificationNo
