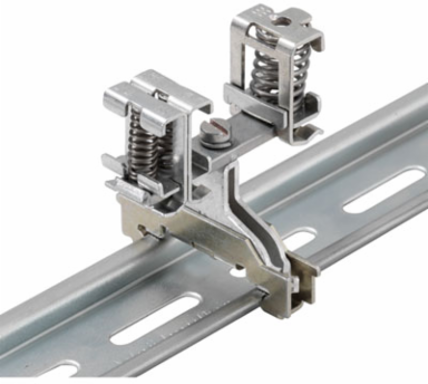

Weidmuller 1749430000 BS 35II KLBUE3-8/2X2-6
- MPN: 1749430000
- PPN: WDM-1749430000
CAD
$53.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Set of fixings, Steel
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Height | 35 mm |
|---|---|
| Depth | 36.5 mm |
| Net weight | 60.8 g |
| Height (inches) | 1.378 inch |
|---|---|
| Depth (inches) | 1.437 inch |
| Diameter | 3 mm |
Dimensions
| Diameter | 3 mm |
|---|
| TS 35 offset | 26.5 mm |
|---|
Additional Technical Data
| Explosion-tested version | Yes |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Steel |
|---|
| Colour | silver |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Clamping yoke |
|---|
| Rail | TS 35 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Conductors For Clamping (Rated Connection)
| Cable diameter, max. | 8 mm |
|---|
| Cable diameter, min. | 3 mm |
|---|
