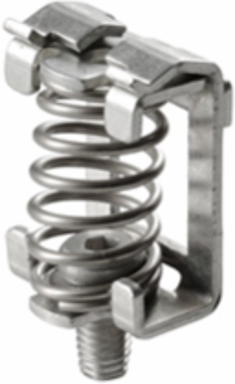

Weidmuller 1835840000 KLBUE 3-8 SDSC
- MPN: 1835840000
- PPN: WDM-1835840000
CAD
$4.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Clamping yoke, Steel
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 14.4 mm
- Height
- 18 mm
- Depth
- 25.9 mm
- Mounting dimension - width
- 13.2 mm
Width (inches)0.567 inch
Height (inches)0.709 inch
Depth (inches)1.02 inch
Net weight12.3 g
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Screw
Installation adviceDirect mounting
Material Data
- Material
- Steel
Coloursilver
Classifications
- ETIM 6.0
- EC002020
- eClass 9.0
- 27-14-11-50
- eClass 10.0
- 27-14-11-50
ETIM 7.0EC002020
eClass 9.127-14-11-50
System Specifications
- Version
- For a shield connection
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Conductors For Clamping (Rated Connection)
- Cable diameter, max.
- 8 mm
Cable diameter, min.3 mm
