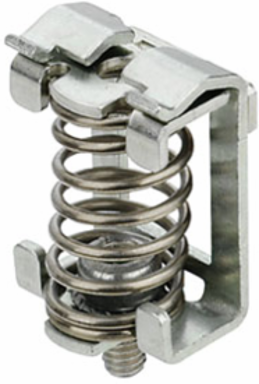

Weidmuller 1692261001 KLBUE 3-8 SC
- MPN: 1692261001
- PPN: WDM-1692261001
CAD
$15.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Clamping yoke, Steel
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 14.5 mm
- Height
- 18.5 mm
- Depth
- 26 mm
- Mounting dimension - width
- 13.5 mm
Width (inches)0.571 inch
Height (inches)0.728 inch
Depth (inches)1.024 inch
Net weight10.794 g
Dimensions
- Length of thread
- 5.65 mm
Pitch in mm (P)14 mm
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- Snap-on
Installation adviceDirect mounting
Type of mountingScrew
Material Data
- Material
- Steel
Coloursilver
Classifications
- ETIM 6.0
- EC002020
- eClass 9.0
- 27-14-11-50
- eClass 10.0
- 27-14-11-50
ETIM 7.0EC002020
eClass 9.127-14-11-50
UNSPSC30-21-18-01
System Specifications
- Version
- For a shield connection
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Conductors For Clamping (Rated Connection)
- Cable diameter, max.
- 8 mm
Cable diameter, min.3 mm
