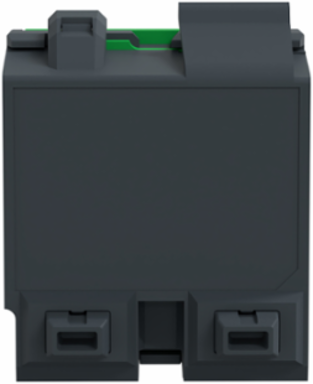

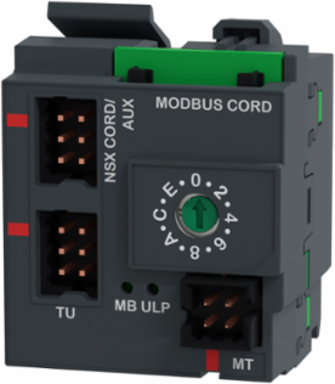

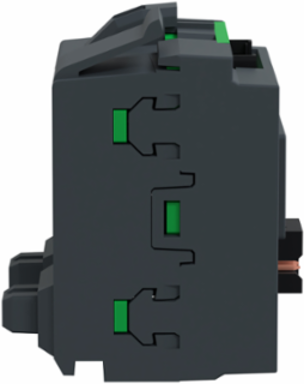

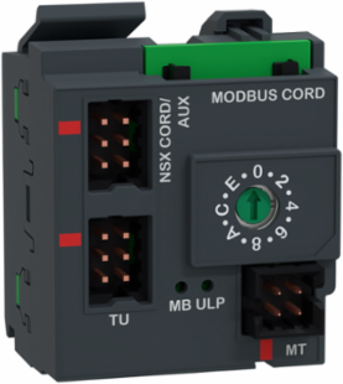

Schneider Electric S434303BX Circuit breaker accessory, communication kit, BSCM V2, 3.00m NSX cable, greater than 480V

MPN: S434303BX
PPN: SCH-S434303BX
UNSPSC: 39121616

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D PowerPacT H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The optional BSCM Breaker Status & Control Module is used to acquire device status indications and control the communicating remote-control function. It includes a memory used to manage the maintenance indicators. The BSCM can be used to carry out communicating remote control operations using the communicating motor operator (open, close and reset) in different modes (manual, auto). The BSCM is installed inside the circuit breaker behind the front cover. It is connected to external Ethernet or Modbus interfaces (IFE/IFM) via the NSX cord terminal block. The BSCM operational voltage is 24VDC. This unit is UL/CSA certified.

Features

Designed for durability against severe temperatures and corrosive/chemical atmospheres
Customize and upgrade anytime with digital modules
Unlock advanced functions for protection, measurement, diagnostics, and maintenance
Incorporate the latest digital technologies to provide improved power uptime and energy efficiency
Receive timely remote notifications: event type, severity level, time stamp, etc.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Physical Attributes

Cable Length	3.00 m

Complementary Attributes

Ue Rated Operational Voltage	> 480 V, <= 690 V, > 480 V, <= 690 V

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL 489, UL 60947-4-1, IEC 60947-2, CSA C22.2 No 5-16, CSA C22.2 No 14, FCC
Local Publishable Date	2026-09-05
Return Indicator	Y
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2420
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Device Short Name	breaker status control module
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Accessory / Separate Part Type	NSX cable
Customs Code	8517620090
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Pre Comm Date	2024-09-09
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Product Or Component Type	communication kit
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	No

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
