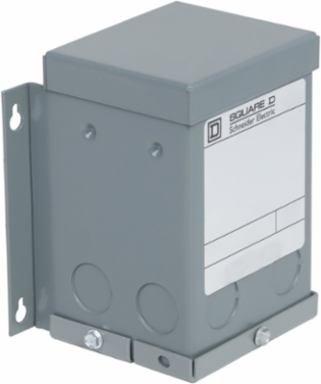

Square D 50SV46A Buck Boost Transformer 0.05 kVA 1 Phase 120x240V NEMA 3R 55 C Rise
- MPN: 50SV46A
- UPC: 785901069027
- PPN: SCH-50SV46A
CAD
$380.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The 50SV46A Buck Boost Transformer from Schneider Electric is engineered to deliver exceptional performance in power distribution applications. With a capacity of 0.05 kVA, this single-phase transformer is designed for efficient voltage adjustment, accommodating input voltages of 120x240V. Engineered for reliability, it features a NEMA 3R enclosure that protects against environmental factors, ensuring consistent operation in various outdoor settings. Additionally, the transformer is rated for a 55 C rise, making it suitable for demanding conditions while maintaining optimal thermal management. This unit is a vital component for enhancing electrical installations and optimizing power supply for tailored uses.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Rated Power In Va
- 0.05 kVA
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Box Number
- 1A
- Primary Voltage
- 120 x 240 V
- Product Or Component Type
- Buck and Boost Transformer
- Secondary Voltage
- 16/32 V
- Temperature Rise
- 55 °C
- Package Weight(Lbs)
- 1.905 kg
- Warranty (In Months)
- 18
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeTransformer - dry
TraceabilityNo
Average Life Duration25 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Insulation Temperature105 °C
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504314065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Buck and Boost Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
