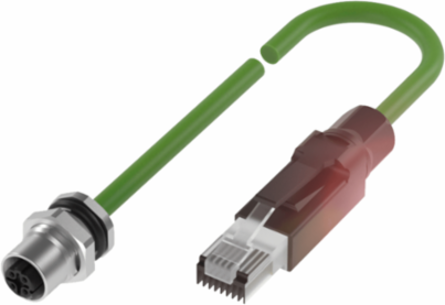

Balluff BCC M415-E834-AG-RP001-050 Bulkhead Connectors IP67, RJ45 4-Pin, M12 4-Pin, PG9 Mounting
- MPN: BCC M415-E834-AG-RP001-050
- PPN: BAL-BCC0FYZ
CAD
$152.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our plug connectors RJ45 and M12 (A-, B- and D-coded) in various designs are exceptionally robust, resistant to shocks and vibration. High dust and water protection and high-quality materials distinguish the connectors. They ensure a reliable and rapid connection through the control cabinet wall or other housings.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 60 VDC / 60 VAC |
|---|---|
| Mounting | PG9 |
| Connector 2 Type | RJ45-Male, straight, 4-pin |
| Cable Length | 5.00 m |
| Conductor Cross-Section | 0.34 mm2 |
| Cable Jacket Material | PUR, Shielded |
| Number of Conductors | 4 |
| Bending Radius Fixed Cable | 5 x cable diameter |
| Cable Bending Cycles Minimum | 2 million |
| Horizontal Travel Max Drag Chain | 5 m at 5 m/s2 |
| Traverse Speed Max Drag Chain | 200 m/min |
| IP Rating | IP67/IP20 |
|---|---|
| Connector 1 Type | M12x1-Female, straight, 4-pin, D-coded |
| Approval/Conformity | CE, EAC, WEEE |
| Cable Diameter | 6.70 mm 0.20 mm |
| Cable Material | PUR |
| Contact Material | Brass |
| Cable Jacket Color | Green |
| Bending Radius Flexible Cable | 15 x cable diameter |
| Acceleration Max Drag Chain | 2 m/s2 |
| Vertical Travel Max Drag Chain | 5 m at 5 m/s2 |
| Cable Temperature Range | -20 to 60 C |
