Balluff BCC M415-M415-M415-U0053-000 T-Splitters BCC M415-M415-M415-U0053-000
- MPN: BCC M415-M415-M415-U0053-000
- PPN: BAL-BCC0F58
CAD
$62.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

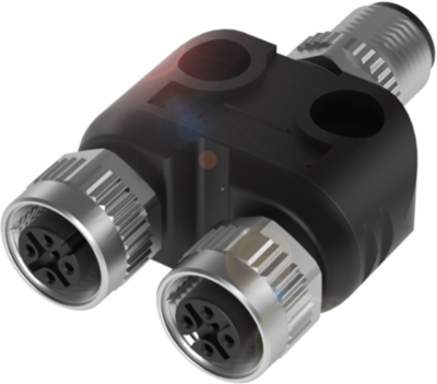

You can use tees to collect, connect and split two signals. They are distinguished by their small, narrow and compact design and are available in different physical forms. We sell tees with M8, M12 and 7/8“ connections that are suitable for 3, 4 and 5-wire cables. Chose from different protective circuits and variants without, with one or with two mounting holes.
Documentation & Downloads
Specifications
Key Specifications
| Connection 1 | M12x1-Male, 5-pin, A-coded |
|---|---|
| Connection 3 | M12x1-Female, 5-pin, A-coded |
| IP rating | IP68 |
| Approval/Conformity | EAC, WEEE |
| Connection 2 | M12x1-Female, 5-pin, A-coded |
|---|---|
| Operating voltage Ub | 60 VDC / 60 VAC |
| Ambient temperature | -25-85 °C |
