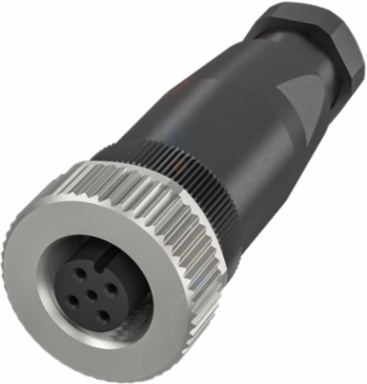

Field Attachables M12x1, 4-Pin, IP67, 4.0 A, -40 to 85 °C
Balluff

Balluff BCC M435-0000-1A-000-51X475-000 Field Attachables M12x1, 4-Pin, IP67, 4.0 A, -40 to 85 °C

  • MPN: BCC M435-0000-1A-000-51X475-000
  • PPN: BAL-BCC06F6

CAD

$14.39

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Designed for robust industrial applications, this field attachable connector from Balluff offers exceptional reliability and performance. With an IP67 rating, it ensures protection against dust and water ingress, making it suitable for harsh environments. The M12x1 5-pin A-coded connection supports a rated current of 4.0 A and operates effectively across a wide temperature range of -40 to 85 °C. Featuring screw terminals for secure wire mounting, this connector is ideal for various applications requiring durable and dependable connectivity. Its compliance with CE and cURus standards further underscores its quality and safety for use in diverse settings.

Documentation & Downloads

Specifications

Additional

Rated Current
4.0 A
Number of Contacts
4
Temperature Range
-40 to 85 °C
Thread Size
M12x1
Cable Diameter
6...8 mm
Approval/Conformity
CE; cURus; WEEE
Operating Voltage250 VDC / 250 VAC
Ingress ProtectionIP67
Connection TypeM12x1-Female, straight, 5-pin, A-coded
Mounting TypeScrew terminals
Connection Cross-Section0.14...0.75 mm²
Country of OriginGermany
