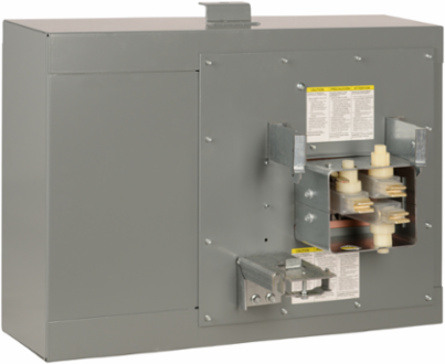

Square D PBTB306G Busway, I-Line, plug in, tap box, 400A, 600A, 3 phase, 3 wire, integral ground bus

Busway, I-Line, plug in, tap box, 400A, 600A, 3 phase, 3 wire, integral ground bus

Square D PBTB306G Busway, I-Line, plug in, tap box, 400A, 600A, 3 phase, 3 wire, integral ground bus

MPN: PBTB306G
UPC: 785901787129
PPN: SCH-PBTB306G

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in tap box is for 400A and 600A 3 phase, 3 wire with integral ground bus systems. I-Line busway is UL listed and CSA certified.

Specifications

Environment

Product Certifications: CSA C22.2 No 27 || UL listed file E22182

StandardsUL 857

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407014EN

Pvc Free: Yes

Eu Rohs Directive: Compliant

Reach Free Of Svhc: Yes

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

[In] Rated Current: 600-600 A || 400-400 A

Mounting Mode: plug-in

Width: 659 mm

Network Number Of Phases: 3 phases

Awg Gauge: AWG 2...600 kcmil 2 phase and neutral || AWG 1/0 2 ground

Height468 mm

Wiring Configuration3-wire (integral ground bus)

Depth197 mm

Materialaluminium

Specifications

Range Of Product: I-Line

Product Or Component Typetap box
