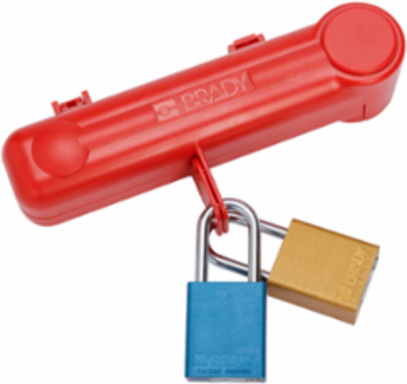

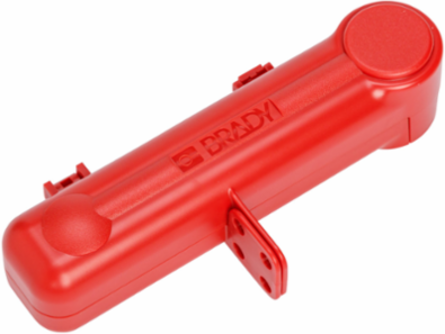

Brady 170220 Butterfly Valve Lockout Device, ABS Plastic, 8 in Max Valve Size, Red
- MPN: 170220
- UPC: 754473644925
- PPN: BRD-170220
- UNSPSC: 39121909
CAD
$48.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

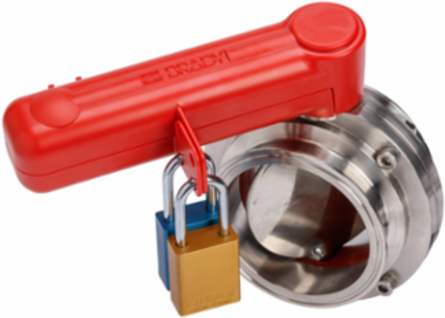

Stop using ill-fitting, incorrect or unwieldy two-piece devices to lock out your pull handle valves. Get a safer solution that fits better and stays in place – the Pull-handle Butterfly Valve Lockout.
Features
- Exclusive, anti-pivot lockout device fits the full range of pull handle valve sizes, from 1/2 in. to 8 in. diameter
- A convenient, one-piece design that stays together whether in use or in storage
- Holds up to four worker padlocks

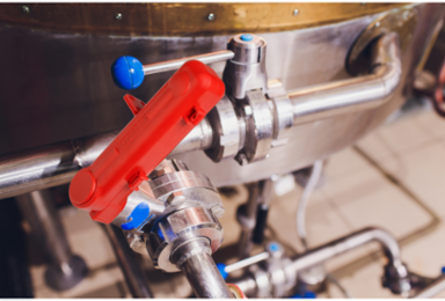

- Effective for all popular pull handle valves commonly used in food and beverage, water utilities, chemical, pharmaceutical and many other industries
- Secures the valve handle in any desired position, from fully closed, to partially or fully open
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Lockout Tagout
- Color
- Red
- Enables Industry Compliance
- OSHA 29 CFR 1910.147
- Maximum Number of Padlocks
- 4
- Risk Type
- Mechanical Risk
- Brady Material Number
- LOTO-112
- Lockout Material
- ABS Plastic
- Depth (in/ft/yd)
- 2.12 in
- Dimensions
- 3.82 in H x 2.12 in W x 2.12 in D
- Handle Thickness Range (in/ft/yd)
- 3/4 - 2 in
- Height (in/ft/yd)
- 3.82 in
- Maximum Handle Width (mm/cm/m)
- 50.80 mm
- Maximum Service Temperature °F
- 212 °F
- Maximum Shackle Diameter (mm/cm/m)
- 8.00 mm
- Minimum Service Temperature °C
- -25 °C
- Minimum Valve Size (in/ft/yd)
- 0.5 in
- Service Temperature Range °F
- -20 °F to 212 °F
- Size - W x H x D (mm)
- 217.42 x 53.85 x 97.03
- Valve Size Range
- 0.5 to 8 in
- Width (mm/cm/m)
- 54 mm
Brand NameBrady®
ConductivityNon-Conductive
IndustryEnergy utilities; Manufacturing; Oil & gas; Food processing; Beverage processing; Pharmaceutical; Chemical
Primary Noun, Basic FunctionLockout Device
Total Qty per Pack1 Piece(s) / Pack
ConductiveNo
MaterialABS Plastic
Depth (mm/cm/m)97.03 mm
Dimensions (Metric)217.42 mm W x 53.85 mm H x 97.03 mm D
Handle Thickness Range (mm/cm/m)3/4 - 2 in
Height (mm/cm/m)53.85 mm
Maximum Service Temperature °C100 °C
Maximum Shackle Diameter (in/ft/yd)0.312 in
Maximum Valve Size8 in
Minimum Service Temperature °F-20 °F
Service Temperature Range °C-25 °C to 100 °C
Sign Size-General3.82 in x 2.12 in
Size - Width (mm)217.42 mm
Width (in/ft/yd)2.12 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
