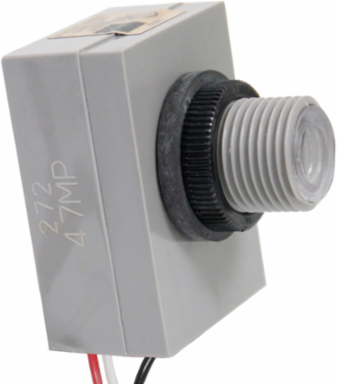

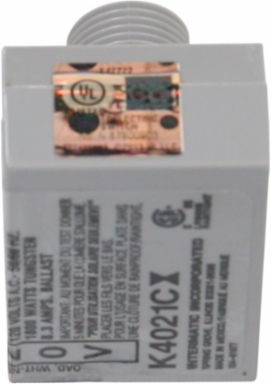

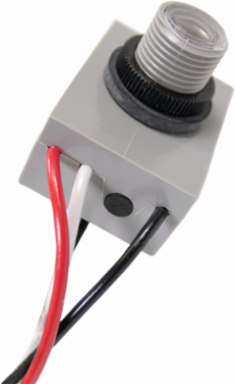

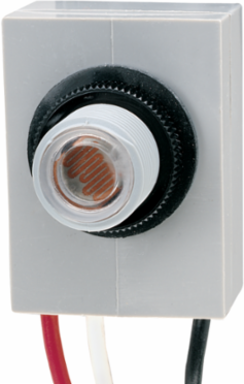

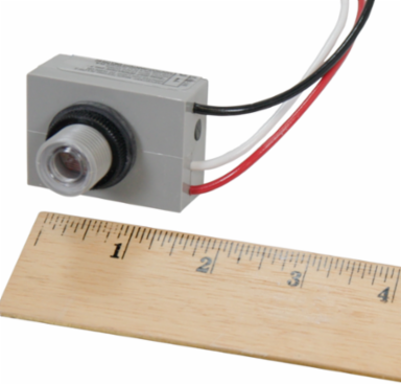

Intermatic K4021C Button Thermal Photocontrol 120 V
- MPN: K4021C
- UPC: 078275002005
- PPN: INT-K4021C
- UNSPSC: 39121524
CAD
$23.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
- Delay feature prevents unwanted OFF switching
- 3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC, 50/60 Hz
- Width
- 0.938 in
- Application Compatibility
- Outdoor Lighting Control
- Housing Material
- Polycarbonate
- Compliance
- UL Listed, CSA Certified, Title 20, Prop 65 Compliant
- Warranty Period
- 2-Year limited
- Switch Type
- Mechanical Bimetal
- Activation On
- 1 to 5 fc
- Photocontrol Type
- Thermal
- Sensor Location
- Front
- Wire Size Max
- #18 AWG
- Tungsten Range
- 15 A, 1800 W
Height1.813 in
Depth0.811 in
ColorGray
Operating Temperature Range-40 C to 70 C
Country of OriginMexico
Photocell TypeCadmium Sulfide
Sensor Time Delay30 to 90 sec
Activation Off3 to 15 fc
Photocontrol StyleButton
Wire Lead Length9 in
Magnetic Ballast Range8.3 A, 1000 VA
Expected Lifetime5 years, 3650 operations
