Hubbell PBT-234 PBT-234

Description

Features

• Button photocontrols (PBT) are compact, mounted inside protective enclosures such as fixtures or wiring boxes and have 3/8" dia threaded nipple with cell. Available in 120 or 208/240/277 volt models.
• Stem Mounted photocontrols (PTA) are weather proof and are mounted externally to fixtures or boxes. Stem is 1/2". Unit includes an adjustable light shield for sensitivity control.

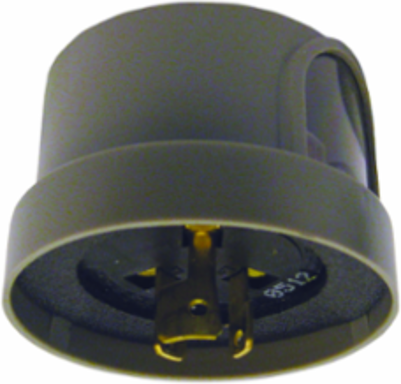

• Twistlock controls (PTL) are easy to install and change out of their mating receptacles (by others). Units are available in 120, 120/208/240/277 and 480volt. Design is weather proof once installed.
• Remote Receptacles (PRR) allow photocontrol addition to existing fixtures. Receptacle and mounting bracket with multiple mounting holes. Use with PTL Twistlock photocells shown above.
• Shorting Cap (PSC) completes the circuit and weather protects Twistlock receptacles. Use to by pass existing receptacles if conversion to a timer or other switch control is desired.

Documentation & Downloads

Specifications
