nVent Hoffman C12C20 Consolet Enclosure Type 12, 12.00 x 20.00 x 9.09 Inch, NEMA Type 12, Steel
- MPN: C12C20
- UPC: 783510598808
- PPN: HOF-C12C20
- UNSPSC: 39121323
CAD
$506.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

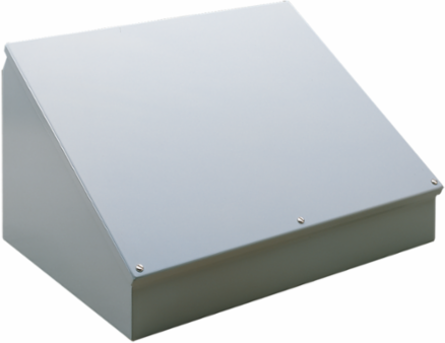

A flexible consolet for mounting small control or instrumentation devices on desktop or pedestal. This Steel Consolet Enclosure Type 12, C12C20 item measures 12.00x20.00x9.09 inches with a material of Steel colored Gray ANSI 61.
Features
- Can be positioned on either of two sides to provide a 30- or 60-degree surface access
- Seams continuously welded and ground smooth
- No holes or knockouts
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Oil-resistant gasket and adhesive
- Continuous hinge
Documentation & Downloads
Specifications
Additional
| Size | 12.00 x 20.00 x 9.09 in |
|---|---|
| Finish | ANSI 61 gray polyester powder paint |
| NEMA Rating | 12 Indoor, dust-resistant |
| Weight | 20.5 lb |
| Depth (D) | 231 mm |
| Height (H) | 305 mm |
| Gauge | 14 gauge |
| Cover Attachment | Continuous hinge along bottom edge |
| Bonding Provision | On cover |
| Panel Mounting Studs Location | On the N side |
| Material | Steel |
|---|---|
| Protection Rating | NEMA Type 12 |
| IP Rating | IP65 |
| Thickness (T) | 1.9 mm |
| Width (W) | 508 mm |
| Color | Gray |
| Seams | Continuously welded and ground smooth |
| Cover Screws | Captivated, thread into sealed wells |
| Gasket | Oil-resistant gasket and adhesive |
| Access Angle | 30 or 60 degrees surface access |
