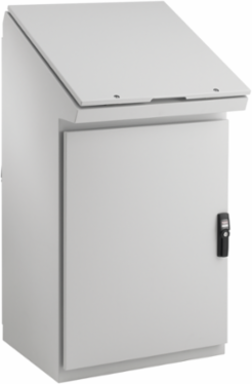

nVent Hoffman PGLD1074DC ProLine Gold Series 1-Bay Desk Console Type 12, 1013x641x393, Lt Gray, Steel
- MPN: PGLD1074DC
- UPC: 783510143817
- PPN: HOF-PGLD1074DC
- UNSPSC: 39121323
CAD
$2303.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine Gold Series Desk Console provides ergonomic surface for mounting controls. This ProLine Gold Series 1-Bay Desk Console Type 12, PGLD1074DC item measures 1013x641x393mm with a material of Steel colored Lt Gray.
Features
- 25-degree sloped top
- Seams continuously welded and ground smooth
- Top door prop allows for single-handed operation
- Built-in top door handle
- Quarter-turn latches hold top door securely closed
- ProLine latching system and keylocking swing handles on front doors and on rear doors of dual-access enclosures
- Internal rails on dual-access enclosures facilitate mounting of ProLine internal components
- Full access provides maximum mounting space and easy access to interior components
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- Type 12 Indoor, dust-resistant
- Height
- 1,013 mm
- Depth
- 393 mm
- Material
- Steel
- Type
- 12
- Door Thickness
- 14 and 16 gauge
- Latch Type
- Quarter-turn
- Access
- Front and rear doors (dual-access)
- Mounting Rails
- Internal rails on dual-access enclosures
- Mounting Space
- Full access
- Product Family
- ProLine
IP RatingIP66
Width641 mm
Weight117 kg
FinishPowder Coated RAL 7035 textured light-gray polyester
Body Thickness14 gauge
Top Slope Angle25 degrees
Handle TypeBuilt-in top door handle, keylocking swing handles
Door OperationTop door prop allows single-handed operation
WeldingSeams continuously welded and ground smooth
ColorLight Gray (RAL 7035)
Sub BrandProLine
