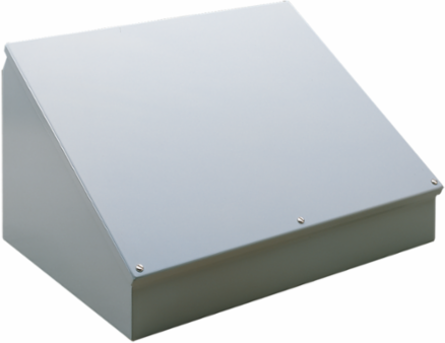

nVent Hoffman C16C20 Consolet Enclosure Type 12, 16.00 x 20.00 x 11.09 Inch, Gray, Steel, NEMA 12
- MPN: C16C20
- UPC: 783510595807
- PPN: HOF-C16C20
- UNSPSC: 39121323
CAD
$575.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
A flexible consolet for mounting small control or instrumentation devices on desktop or pedestal. This Steel Consolet Enclosure Type 12, C16C20 item measures 16.00x20.00x11.09 inches with a material of Steel colored Gray ANSI 61.
Features
- Can be positioned on either of two sides to provide a 30- or 60-degree surface access
- Seams continuously welded and ground smooth
- No holes or knockouts
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Oil-resistant gasket and adhesive
- Continuous hinge
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- Type 12 Indoor, dust-resistant
- Size
- 16.00 x 20.00 x 11.09 in
- Material
- Steel
- Color
- Gray (ANSI 61)
- Construction
- 14 gauge steel, seams continuously welded and ground smooth, no holes or knockouts
- Gasket
- Oil-resistant gasket and adhesive
- Surface Access Angle
- 30 or 60 degrees
IP RatingIP65
Weight26.9 lb
FinishPowder Coated
Thickness1.9 mm
CoverContinuous hinge, captivated screws thread into sealed wells
Bonding ProvisionOn cover
