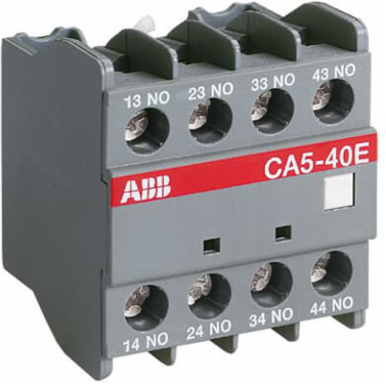

ABB CA5-40E CA5-40E Auxiliary Contact Block
- MPN: CA5-40E
- UPC: 662019881409
- PPN: ABB-CA5-40E
- UNSPSC: 39121522
CAD
$138.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CA5-40E Auxiliary Contact Block
Specifications
Dimensions
- Product Net Width
- 43 mm
- Product Net Height
- 47 mm
Product Net Depth / Length39 mm
Product Net Weight0.06 kg
Technical
- Maximum Electrical Switching Frequency
- 1200 cycles per hour
- Mechanical Durability
- 10 million3 million
- Mounting Position
- Front face
- Number of Auxiliary Contacts NC
- 0
- Number of Poles
- 4
- Rated Frequency (f)
- Auxiliary Circuit 50 / 60 Hz
- Rated Operational Current AC-15 (Ie)
- (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A
- Rated Operational Voltage
- Auxiliary Circuit 690 V
- Remarks
- 100
- Suitable For
- AF45AF50AF63AF75AF95BGAF75A9A16A26A45A50A63A75A95A110AL9AL16AL26AE45AE50AE63AE75TAL9TAL16TAL26TAE45TAE50TAE75GA75GAE75UA50UA63UA75UA95UA110
Maximum Mechanical Switching Frequency3600 cycles per hour
Minimum Switching CapacityA9 ... A75 17 / 5 VLT4KA95 ... A110 24 / 50 VLT4K
Mounting TypeFront mounting
Number of Auxiliary Contacts NO4
Power Lossat Rated Operating Conditions per Pole 0.1 W
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 Vacc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)(24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.30 A / 66 W(250 V) 0.3 / 75 W
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 140 Afor 1 s 100 A
Short-Circuit Protective DevicesAuxiliary Circuit - gG Type Fuses 10 A
Terminal TypeScrew Terminals
Classifications
- eClass
- V11.0 : 27371302
- ETIM 9
- EC000041 - Auxiliary contact block
- Object Classification Code
- K
E-Number (Finland)3709195
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
Environmental
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- WEEE B2C / B2B
- Business To Business
RoHS Information2CMT2021-006277
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Pilot Duty UL/CSA
- A600Q300
Ordering
- Minimum Order Quantity
- 2 piece
- Product Main Type
- Accessories for Block Contactors
Customs Tariff Number85389099
