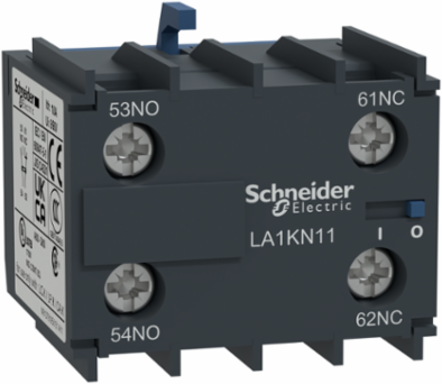

Schneider Electric LA1KN11 TeSys K Auxiliary Contact Block 1NO+1NC Front Mount, 10A 690V AC
- MPN: LA1KN11
- PPN: SCH-LA1KN11
CAD
$15.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
LA1KN11 is a Schneider Electric instantaneous auxiliary contact block for TeSys K contactors. It provides 1NO+1NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Easy clip-on mounting on front, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC). Multi standards certified (IEC, UL, CSA, CCC).
Features
- The Schneider Electric LA1KN11 auxiliary contact block is engineered specifically for front-mount clip-on integration with the TeSys K compact contactor range and TeSys K control relays. It expands your mechanical configuration instantly without taking up valuable lateral space on your DIN rail, making it perfect for crowded industrial automation panels.
- This module features an instantaneous 1NO + 1NC (one normally open and one normally closed) dual-contact layout rated up to 10 A at 690 V AC. This dual state allows maintenance teams to simultaneously trigger a primary auxiliary function while sending a clear status feedback signal to a PLC or indicator light.
- The LA1KN11 is manufactured to rigorous international standards and holds multi-standard certifications, including CSA C22.2, UL, IEC, and CE compliance. It delivers premium operational safety and simplifies facility audits by adhering to strict electrical safety codes out of the box.
- As a certified Schneider Electric Green Premium product, this component fully complies with RoHS and REACh environmental regulations. It ensures your industrial control machinery meets modern eco-design requirements while safeguarding your supply chain against restricted hazardous substances.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 690 V AC 25...400 Hz
- Making Capacity
- 110 A at <= 690 V AC conforming to IEC 60947
- Associated Fuse Rating
- 10 A gG at <= 690 V conforming to IEC 60947
- Minimum Switching Voltage
- 17 V
- Rated Insulation Voltage
- 690 V IEC 60947-5-1, 600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1
- Insulation Resistance
- > 10 MOhm
- Terminal Type
- Screw clamp terminals compatible with flexible and rigid cables 0.34-4 mm2
- Width
- 38 mm (1.50 in)
- Net Weight
- 0.045 kg (0.10 lb)
- Protective Treatment
- TC IEC 60068
- Ambient Air Temperature for Operation
- -25 to 50 C (-13 to 122 F)
- Compliance
- IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, CB, CCC, CE, UKCA, RoHS, REACh
- Rohs Exemption Information
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Toxic Heavy Metal Free
- Yes
- Range Compatibility
- TeSys K LC1K, TeSys K CA2K, TeSys K CA3K, TeSys K CA4K
- Device Short Name
- LA1
- Environmental Characteristic
- Normal environment
- Circularity Profile
- N/A
- Sustainable Offer Status
- Green Premium product
Conventional Free Air Thermal Current10 A at 50 C
Permissible Short-Time Rating80 A 1 s, 60 A 500 ms, 110 A 100 ms
Minimum Switching Current5 mA
Pole Contact Composition1 NO + 1 NC
Non Overlap Distance0.5 mm (0.02 in)
Tightening Torque1.3 N.m Philips No 2 or Pozidriv No 2
Height30 mm (1.18 in)
Depth35 mm (1.38 in)
IP Degree of ProtectionIP20 IEC 60529
Ambient Air Temperature for Storage-50 to 80 C (-58 to 176 F)
Operating Altitude2000 m (6562 ft)
Product CertificationsCB Scheme, CCC, UL, CSA, CE, UKCA
Reach Free Of SvhcYes
Eu Rohs DirectiveCompliant
Mercury FreeYes
RangeTeSys
Mounting LocationFront
Auxiliary Contacts OperationInstantaneous
Environmental DisclosureENVPEP2106022
Product Or Component TypeAuxiliary contact block
