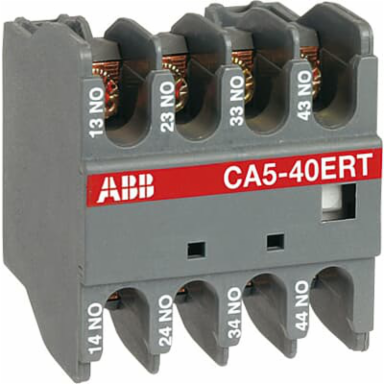

ABB CA5-40ERT CA5-40ERT Auxiliary Contact Block

Name: ABB CA5-40ERT CA5-40ERT Auxiliary Contact Block
Brand: ABB
SKU: ABB-CA5-40ERT
Price: 188.57 CAD
Availability: BackOrder

CAD

$188.57

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

CA5-40ERT Auxiliary Contact Block

Rated Operational Current AC-15 (Ie)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A
Rated Operational Voltage	Auxiliary Circuit 690 V
Rated Frequency (f)	50 / 60 Hz Auxiliary Circuit
Number of Poles	4
Number of Auxiliary Contacts NC	0
Terminal Type	Ring-Tongue Terminals
Product Net Width	43 mm
Product Net Weight	0.06 kg
Degree of Protection	IP10 IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals
Object Classification Code	K
RoHS Information	Compliant, 2CMT2021-006277
WEEE Category	Small Equipment (No External Dimension More Than 50 cm)

Rated Operational Current DC-13 (Ie)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.3 A / 75 W
Rated Insulation Voltage (Ui)	690 V IEC 60947-5-1, 600 V UL/CSA
Rated Short-time Withstand Current Low Voltage (Icw)	140 A for 0.1 s, 100 A for 1 s
Number of Auxiliary Contacts NO	4
Mounting Type	Front mounting
Product Net Height	47 mm
Product Net Depth / Length	39 mm
Material	Not specified
Pilot Duty UL/CSA	A600Q300
Suitable For	AF45, AF50, AF63, AF75, AF95, BG, AF75A9, A16, A26, A45, A50, A63, A75, A95, A110, AL9, AL16, AL26, AE45, AE50, AE63, AE75, TAL9, TAL16, TAL26, TAE45, TAE50, TAE75
Customs Tariff Number	85389099
WEEE B2C / B2B	Business To Business
