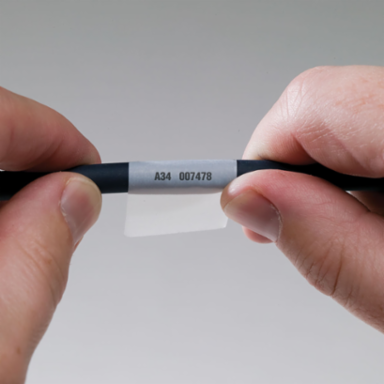

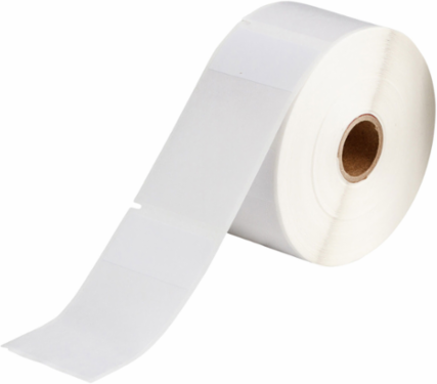

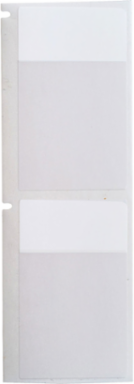

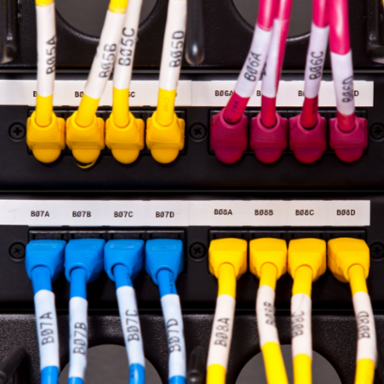

Brady THT-27-427-.5-SC Self-Laminating Vinyl Wire and Cable Labels, 3.75" H x 2" W, Roll of 500 Labels
- MPN: THT-27-427-.5-SC
- UPC: 662820921233
- PPN: BRD-THT-27-427-.5-SC
- UNSPSC: 55121612
CAD
$468.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Self-Laminating Vinyl (B-427) is an excellent material for wire and cable identification. This material has good clarity, conformability and is self-extinguishing.
Features
- Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
- Durable, permanent acrylic adhesive has outstanding water and oil resistance
- UL approved
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Compatible Surface Types | General |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Quantity per Roll | 500 |
| Recommended Ribbon | R4313 |
| Suggested Ribbon Series | R4300; R4500 |
| Adhesive Type | Permanent Acrylic |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Self-laminating Vinyl |
| Overlaminate Included | Overlaminate Included |
| SAP B-Number | B-427 |
| Dimensions (Metric) | 95.3 mm H |
| Height (in/ft/yd) | 3.75 in |
| Label/Tape Size (in/ft/yd) | 3.75 in H x 2 in W |
| Maximum Service Temperature °F | 158 °F |
| Maximum Wire Diameter (mm/cm/m) | 22.35 mm |
| Minimum Service Temperature °F | -94 °F |
| Minimum Wire Diameter (mm/cm/m) | 11.18 mm |
| Printable Area Dimensions (Metric) | 25.4 mm H x 50.8 mm W |
| Printable Area Height (mm/cm/m) | 25.4 mm |
| Printable Area Width (mm/cm/m) | 50.8 mm |
| Thickness (in/ft/yd) | 0.004 in |
| Vertical Repeat | 4 in |
| Width (mm/cm/m) | 50.8 mm |
| Color | Clear/White |
|---|---|
| Enables Industry Compliance | ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized |
| For Use with Printer | BBP®11 Label Printer; BBP®12 Label Printer; THT 1" Core Printer |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Wire & Cable |
| Quantity per Row | 1 |
| Shape | Rectangle |
| Total Quantity | 500 |
| Brady Material Number | B-427 |
| Label Properties | Self Laminating Labels & Wraps |
| Material Properties | Flame-retardant; Self-laminating |
| Resistance Properties | Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant |
| Dimensions | 3.75 in H x 2 in W |
| Dimensions 2 | 3.75 in H x 2 in W |
| Height (mm/cm/m) | 95.3 mm |
| Maximum Service Temperature °C | 70 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.88 in |
| Minimum Service Temperature °C | -70 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.44 in |
| Printable Area Dimensions | 1 in H x 2 in W |
| Printable Area Height (in/ft/yd) | 1 in |
| Printable Area Width (in/ft/yd) | 2 in |
| Sign Size-General | 3.75 in x 2 in |
| Thickness (mm/cm/m) | 0.102 mm |
| Width (in/ft/yd) | 2 in |
| Wire Diameter Range | 0.44 in to 0.88 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliant | Yes |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
