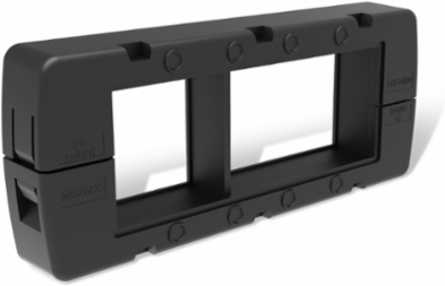

nVent Hoffman CCFO1024 Cable Entry System, 64x153x24mm, Black, IP66, Plastic
- MPN: CCFO1024
- UPC: 783510583293
- PPN: HOF-CCFO1024
- UNSPSC: 39121324
CAD
$31.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
A fast, safe and versatile modular cable entry system, the CCFO system is mounted from the outside, and provides secure seals and strain relief for pre-assembled and unassembled cables with or without connectors. The cable entry system is managed from the outside of the enclosure
Features
- Delivery: Frame, protected hood + Inlay for CCFGS
- Description: An inverted cable entry system, the CCFO enables complete assembly from the outside of the enclosure. It is made of sturdy, glass-fiber reinforced plastic. The rubber seal helps ensure an optimal seal with IP66 protection. The CCFI comes prepared with inlays to fit small grommets (CCFGS). CCFG grommets need to be ordered separately. CCFD dividers can be bought separately if a different configuration is needed.
- Finish: Black
- Flammability: UL94 V-0
- Material: Polyamide 6.6 / TPE
- Pack quantity: 1pc
- Protection: IP66, NEMA 1, 4x, 12 (Indoor use only)
- Temperature resistance: -40°C to +120°C
- CCFO comes standard with inlay/divider for Small Grommet installation
- Grommets sold separately
- Alternate inlays/dividers for different grommet configurations sold separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Cutout Size
- 112 x 36
- Width (W)
- 153
- Product Family
- Cable Manager
- Finish
- Untreated
- Operating Temperature
- -40
- Works With
- NEMA
Cable Entry Quantity10
Height (H)64
Depth (D)24.2
MaterialPlastic
ColorBlack
Weight0.1
