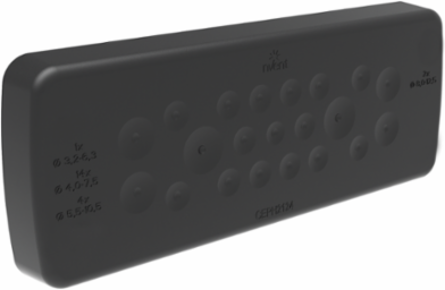

nVent Hoffman CEPH1324 Cable Entry Plastic Plate, 58x150x12mm, 13 Entry, IP66, Black
- MPN: CEPH1324
- UPC: 783510583064
- PPN: HOF-CEPH1324
- UNSPSC: 39121324
CAD
$38.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CEPH-kabelgenomföring ger en mycket platt, utrymmesbesparande professionell kabelgenomföring med en mycket tät tätning. Den speciella formen på membrankongenomföringen hjälper till att säkerställa optimal dragavlastning
Features
- Description: Fast, cost-effective cable entry with a tight seal for incoming cables and/or pneumatic conduits inside an enclosure. Can be affixed with screws or the built-in snap-in system that works for wall thicknesses of 1.5 to 2.5 mm.
- Finish: Black
- Flammability: UL94 V-0
- Material: Polyamide 6.6 / TPE
- Pack quantity: 1 pc
- Protection: IP66, NEMA 1, 4x, 12 (Indoor use only)
- Temperature resistance: -40°C to +90°C
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Cable Entry
- (10) 3.2 - 6.3 mm
- Height (H)
- 58
- Depth (D)
- 12
- Material
- Plastic
- Color
- Black
- Weight
- 0.1
Cable Entry Quantity13
Cutout Size36 x 112
Width (W)149.6
Product FamilyCable Manager
FinishUntreated
Operating Temperature-40
Works WithNEMA
