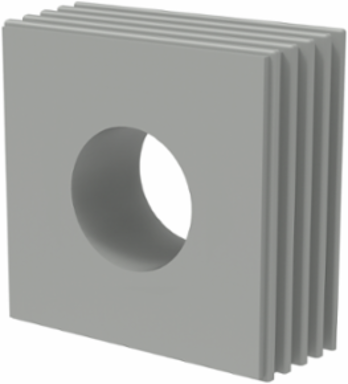

nVent Hoffman CCFGSB Cable Entry Grommet 20x20x18mm Gray Plastic, IP66 Rated, Lightweight
- MPN: CCFGSB
- UPC: 783510583354
- PPN: HOF-CCFGSB
- UNSPSC: 39121324
CAD
$1.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cable Entry Grommet 20x20x18mm Gray Plastic, IP66 Rated, Lightweight
Features
- IP66 Modular Halogen-free and silicone free cable entry system, that provide versatility, variability and variety
- Everything mounted from the outside of the enclosure
- The frames, inlays and grommets can be combined in many ways - ensuring you many versatile configuration options
- The frame does not need to be disassembled if requirements change or carrying out service work
- No need to disassemble and reconnect connectors on cables so manufactures warranty is not voided
- The conical shape of the grommets allows them to be easily pressed in, provides static strain relief in accordance with DIN EN 62444
- For assembly, they are pressed from the inside out into the openings of the assembled inlays
- The grommets are available in different sizes to match the diameter of the cable
- The CCFGS is first plased around the cable and then inserted into the cable gland
- Based on the wave-cut profile, there is no need to remove the connector on the assembled cabled
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 20
- Product Family
- Cable Manager
- Finish
- Untreated
- Operating Temperature
- -40
- Works With
- NEMA
Height (H)20.3
Depth (D)17.7
MaterialPlastic
ColorGray
Weight0.0077097505668934
