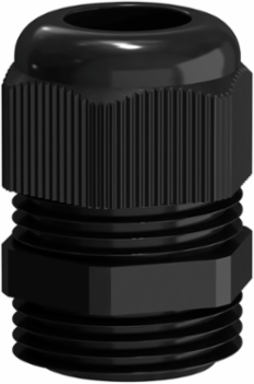

Schneider Electric VW3M9512 Cable Gland M16 for Lexium 32i - 10 Pieces, PVC Free, Green Premium

MPN: VW3M9512
PPN: SCH-VW3M9512
UNSPSC: 26111515

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$118.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric VW3M9512 Cable Gland M16 is designed specifically for integration with Lexium 32i servo drives, ensuring an impeccable fit for your automation and control needs. This set includes ten pieces, each crafted to provide robust connection solutions while adhering to PVC-free standards for environmentally conscious operations. With a focus on quality and performance, these cable glands facilitate seamless motion control, making them an essential component for maintaining the efficiency and reliability of your servo systems. Choose this solution to enhance the safety and longevity of your installations in demanding industrial environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	68 g

Communications & Management Attributes

Communication Interface	CANmotion, CANopen DS402, EtherCAT, Profinet

Important Information Attributes

Carbon Footprint Of The Distribution Phase A4	0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Serviceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium 32i
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	0 kg CO2 eq.
Data Source	extrapolated product
Accessory / Separate Part Destination	cable gland for connector module with cable glands
Customs Code	3926904590
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To operate as an energy‑consuming product at 149 W for 10 years, assuming 60% load and 50% use rate.
Functional Unit Unit	unit
Recyclability Potential In %	93

Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.010716815867352575
Carbon Footprint Of The Manufacturing Phase A1 To A3	0 kg CO2 eq., 0.0263613563596126
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1312017EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Electrical Connection	cable gland
Product Or Component Type	cable gland
Returnability	No
Sustainable Packaging	No
Database Version	2024-01
Accessory / Separate Part Category	connection accessories
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Product Compatibility	control unit LXM32i CANopen, control unit LXM32i EtherCAT, control unit LXM32i Profinet
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1312017EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-21
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.037078172226965175
Environmental Disclosure	ENVPEP1312017EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1312017EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
