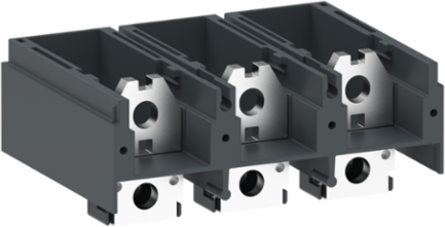

Schneider Electric LA9G3102 TeSys Giga Cable Memory Kit for LC1G265-500, 3 Pole, -25 to 60 °C

MPN: LA9G3102
PPN: SCH-LA9G3102

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$229.35/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are cable memory kit for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. To be used to hold cables in place when replacing contactor, making reinstallation faster and easier. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Environment

Product Certifications: CE || UKCA || cULus

Pollution Degree: 3 IEC 60947-1

Standards: EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4

Operating Altitude: 3000 m without derating || 5000 m with derating factor

Ambient Air Temperature For Operation-25-60 °C

Ambient Air Temperature For Storage-60-80 °C

Ip Degree Of ProtectionIP20 IEC 60529 with terminal shields)

Complementary

Height: 104 mm

Quantity Per Set: set of 2

Depth: 56.4 mm

Poles Description3P

Width140 mm

Net Weight0.6 kg

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2105013

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Specifications

Product Or Component Type: terminal extension

Product CompatibilityLC1G265...500
