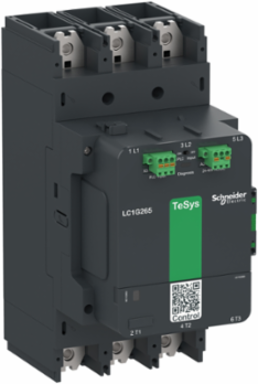

Schneider Electric LC1G265BEEA Contactor, high power, TeSys Giga, advanced version, 3 pole/NO, AC-3 <=440V 265A, 24-48VAC/DC coil
- MPN: LC1G265BEEA
- PPN: SCH-LC1G265BEEA
CAD
$3590.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Contactor, high power, TeSys Giga, advanced version, 3 pole/NO, AC-3 <=440V 265A, 24-48VAC/DC coil
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth226 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4
- Maximum Motor Phase Current
- 265 A
Maximum Horse Power Rating75 hp at 200/208 V 60 Hz, 100 hp at 230/240 V 60 Hz, 200 hp at 460/480 V 60 Hz, 200 hp at 575/600 V 60 Hz
Irms Rated Making Capacity3320 A at 440 V
Rated Breaking Capacity2380 A at 440 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 315 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 400 A gG at <= 690 V, 450 A UL Type J at <= 600 V
- Electrical Durability
- 300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V
- Motor Power Kw
- 132 kW at 400 V AC 50/60 Hz (AC-3), 132 kW at 415 V AC 50/60 Hz (AC-3), 160 kW at 440 V AC 50/60 Hz (AC-3), 160 kW at 500 V AC 50/60 Hz (AC-3), 200 kW at 690 V AC 50/60 Hz (AC-3), 160 kW at 1000 V AC 50/60 Hz (AC-3), 132 kW at 400 V AC 50/60 Hz (AC-4), 132 kW at 415 V AC 50/60 Hz (AC-4), 160 kW at 500 V AC 50/60 Hz (AC-4), 160 kW at 690 V AC 50/60 Hz (AC-4), 160 kW at 1000 V AC 50/60 Hz (AC-4)75 kW at 230 V AC 50/60 Hz (AC-3e), 132 kW at 400 V AC 50/60 Hz (AC-3e), 132 kW at 415 V AC 50/60 Hz (AC-3e), 160 kW at 440 V AC 50/60 Hz (AC-3e), 160 kW at 500 V AC 50/60 Hz (AC-3e), 200 kW at 690 V AC 50/60 Hz (AC-3e), 160 kW at 1000 V AC 50/60 Hz (AC-3e), 75 kW at 230 V AC 50/60 Hz (AC-3), 75 kW at 230 V AC 50/60 Hz (AC-4), 150 kW at 440 V AC 50/60 Hz (AC-4)
- Power Dissipation Per Pole
- 20 W AC-1 - Ith 385 A, 11 W AC-3 - Ith 265 A
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8a, AC-8b, DC-1, DC-3, DC-5
- [Icw] Rated Short-time Withstand Current
- 2.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min
- [Uc] Control Circuit Voltage
- 24...48 V, 24...48 V AC 50/60 Hz, 24...48 V DC
- Connections - Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable endpower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 12.455213504174699, 12 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 78 kg CO2 eq., 78.22722763438956
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- built-in bidirectional peak limiting
- Connection Pitch
- 45 mm
- Inrush Power In Va
- 540-540 VA
- Mechanical Durability
- 8 Mcycles
- Number Of Modules Per Plc Per Pc
- 1
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys Giga
- Software Version
- v6.2.4
- Tightening Torque
- 35 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 265 A
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; China, CN
- Recyclability Potential, In %
- 55
- Width Nominal
- 140 mm
- [Ui] Rated Insulation Voltage
- 1000 V
- Hold-in Power Consumption In Va
- 17.9-17.9 VA
- Rated Thermal Current (Ith)
- 385 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ie] Rated Operational Current385 A (at <40 °C) at <= 1000 V AC-1, 265 A (at <60 °C) at <= 440 V AC-3
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]14.178429471346488, 14 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.11741927237291847
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 031 kg CO2 eq., 1031.2572869204062
Local Publishable Date2026-04-07
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.000144 Ohm
Compatibility CodeLC1G
Device Short NameLC1G
Inrush Power In W380 W
Mounting Supportplate
Number Of Poles3P
Pole Contact Composition3 NO
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 136 kg CO2 eq.
Control Circuit Voltage24...48 V
Rated Thermal Current Hv385 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1248.3
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal290 mm
[Ith] Conventional Free Air Thermal Current385 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W6.4-6.4 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)9.134 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1136.2355768026898
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
