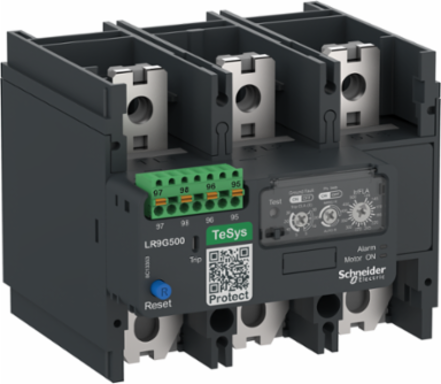

Schneider Electric LR9G500 TeSys Giga Thermal Overload Relay 125-500 A, IP2X, Auto/Manual Reset
- MPN: LR9G500
- PPN: SCH-LR9G500
CAD
$1873.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys LR9G 500A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Network Type
- AC
- Relay Application
- motor protection
- Product Name
- TeSys LRG
- Range
- TeSys
Thermal Protection Adjustment Range125-500 A
Product Or Component Typeelectronic thermal overload relay
Thermal Overload Classclass 5E...30E IEC 60947-4-1
Device Short NameLR9G
Complementary
- Product Certifications
- CB Scheme || CCC || cULus || UKCA || ATEX || EU-RO-MR by DNV-GL || EAC
- [Uc] Control Circuit Voltage
- 24...500 V AC 50/60 Hz || 24...250 V DC
- Tightening Torque
- 35 N.m
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1 || JIS C8201-5-1
- Electromagnetic Compatibility
- EMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity test conforming to SEMI F47
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Contacts Type And Composition
- 1 NO + 1 NC
- Tripping Threshold
- 1.125 +/- 0.07 In IEC 60947-4-1
- Mechanical Durability
- 7000 cycles
- Overvoltage Category
- III
Network Frequency30...60 Hz || 100 Hz
[Ith] Conventional Free Air Thermal Current5 A
Resetautomatic reset || manual
[Ue] Rated Operational Voltage1000 V AC 50/60 Hz
Protection Typeground fault protection 0-1 s alarm circuit IEC 60947-4-1 || ground fault protection 0-1 s alarm circuit UL 60947-4-1 || phase loss 0-4 s alarm circuit || phase imbalance 0-5 s alarm circuit IEC 60947-4-1 || phase imbalance 0-5 s alarm circuit UL 60947-4-1
Connections - Terminalspower circuit: bar - busbar cross section: 32 x 10 mm || power circuit: lugs-ring terminals 1 240-240 mm² || control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end || control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end || control circuit: push-in 2 0.5-1.0 mm² with cable end
Surge Withstand4 kV
Mounting Supportdirect on contactor || plate
Local SignallingLED || trip indicator
Environment
- Height
- 114 mm
- Net Weight
- 1.55 kg
- Protective Treatment
- TH
- Mechanical Robustness
- vibrations 5-300 Hz 6 gn contactor open || shocks 15 gn 11 ms contactor closed
- Width
- 140 mm
- Ambient Air Transport Temperature
- -25-60 °C
Ambient Air Temperature For Operation-25-60 °C
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529 || IP2X front face with shrouds VDE 0106
Colourdark grey
Depth140 mm
Permissible Ambient Air Temperature Around The Device-40-60 °C at Uc
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105014
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105014
Halogen Content PerformanceHalogen free plastic parts product
