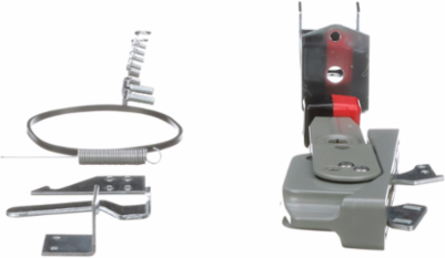

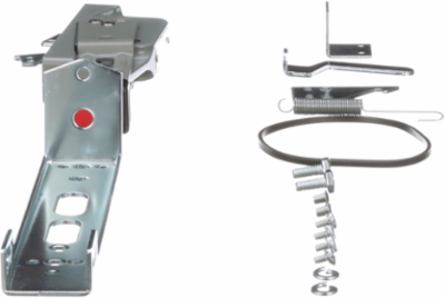

Square D 9422A1 Flange Mounted Handle Mechanism, 6 Inch Length, NEMA 1/3/3R/4/12 Compatible
- MPN: 9422A1
- UPC: 785901739739
- PPN: SCH-9422A1
CAD
$290.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.
Features
- This 6-inch external flange-mounted handle is fully compatible with all Square D and Schneider Electric 9422 series disconnect switches ranging from 30A to 200A, as well as all standard circuit breaker variable-depth operating mechanisms. By providing a single accessory solution for multiple framing profiles, it eliminates configuration guesswork and streamlines your inventory when updating existing control panels or building new sub-panels.
- Designed to maintain the physical integrity of your industrial enclosures, this rugged handle mechanism meets NEMA Type 1, 3, 3R, 4 (sheet steel), and 12 sealing standards. Its heavy-duty construction reliably guards internal components against airborne dust, oil seepage, non-corrosive liquids, and outdoor weather conditions, preventing premature equipment failure in demanding production plants.
- Out of the box, this kit comes complete with all necessary structural components, gaskets, and mounting hardware required to securely attach the handle to the enclosure flange. This comprehensive packaging reduces field labor time, eliminates downstream supply chain delays for missing parts, and ensures a precise, airtight factory seal during retrofit or new installations.
