Weidmuller 2583760000 CABTITE FR 10/6 BK SET
- MPN: 2583760000
- PPN: WDM-2583760000
CAD
$52.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

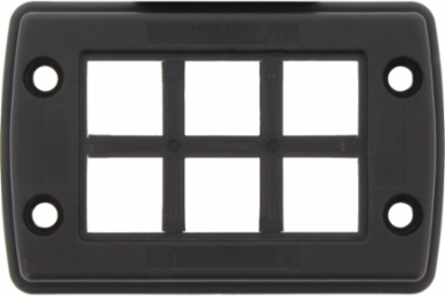

Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 106 mm, Depth: 19.6 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications

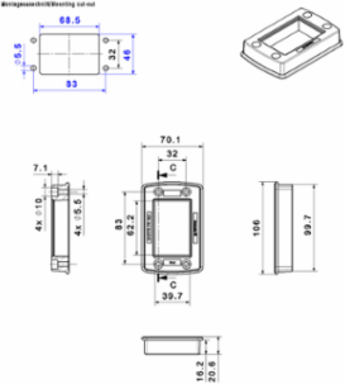

Dimensions And Weights
| Width | 106 mm |
|---|---|
| Height | 70 mm |
| Height of lowest version | 19.6 mm |
| Depth (inches) | 0.772 inch |
| Mounting dimension - height | 83 mm |
| Diameter | 5.5 mm |
| Width (inches) | 4.173 inch |
|---|---|
| Height (inches) | 2.756 inch |
| Depth | 19.6 mm |
| Mounting dimension - width | 32 mm |
| Net weight | 58.1 g |
General Information
| Tightening torque | 3 Nm |
|---|---|
| Opening length | 68.5 mm |

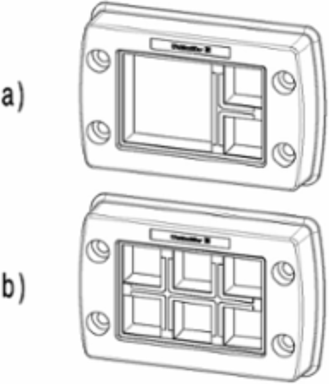

| Sealing element | 6 small sealing elements or 1 large sealing element and 2 small sealing elements |
| Silicone | No |
| Material | Polyamide, glass fibre-reinforced |
| Opening width | 46 mm |
|---|---|
| UL 94 flammability rating | V-0 |
| Halogen | No |
| Sealing | TPE |
Classifications
| ETIM 6.0 | EC002624 |
|---|---|
| eClass 9.0 | 27-18-28-15 |
| eClass 10.0 | 27-18-28-15 |
| ETIM 7.0 | EC002624 |
|---|---|
| eClass 9.1 | 27-18-92-65 |
Approvals
| ROHS | Conform |
|---|
